Nissan Patrol Y61 GU ZD30 CRD - (2004 - 2015) - Common Rail - Clear Top Highflow Airbox/Intake with 3" Turbo Inlet

The Nissan Patrol Y61 GU ZD30 CRD kit features a clear top airbox specifically designed for the ZD30 CRD engine. This Highflow airbox allows for increased air intake, resulting in improved engine performance. Perfect for models between 2004-2015, this upgrade will enhance your off-road adventures.

Airbox is designed to only suit the supplied 4x9" UNI-Filter: TCP2 100/200 (100mm Intake, 115-140mm OD, 200mm Long)

Airbox details:

• Airbox is of Ally Construction with 4" In & 4" Out
• Picks up all 3 Factory Mounts
• 10mm CNC acrylic lid with brushed stainless dress plate & our logo
• CNC Rubber Gasket
• Includes a 4x9" Pod UNI-Filter (only)
• Built in duck valve drain
• Suits dual battery setups
• Designed to suit with our Fabwitz FMIC kits
• Includes all mounting hardware
• Utilizes joiner of Fabwitz snorkel for airbox connection*

*Can use joiner for most aftermarket snorkels to connect with airbox, provided the joiner you have is 4" or you can purchase the joiner as an add-on (+$60) HERE

Intake details:

• 3" Intake to suit CRD
• Rectangle MAF housing *refer to photos of MAF or contact us if unsure*
• Includes Vac fitting for Boost Controller
• Includes Barb fitting for Crank Case/ Catch Can
• Includes 3" Highflow Turbo Inlet
• Includes joiners and hose clamps for intake


If your MAF is the shape of the ZD30 DI, you will need the kit to suit which can be found HERE

Finish: Texture Black only

Dress Plate: Brushed stainless only (no powder coating)

**Designed to suit Fabwitz snorkel and most Aftermarket snorkels on the market that have a 4" joiner already or the joiner can be purchased as an additional add-on. For those with Factory or other plastic snorkels, you will need to source a joiner to connect your snorkel to our airbox as no joiner is supplied.

FITMENT: please add your preferred date in the additional notes of your order. Taking into consideration our fitment availability notice located at the top of our homepage, your preferred date is not guaranteed. We will contact you to confirm availability or an alternative date.

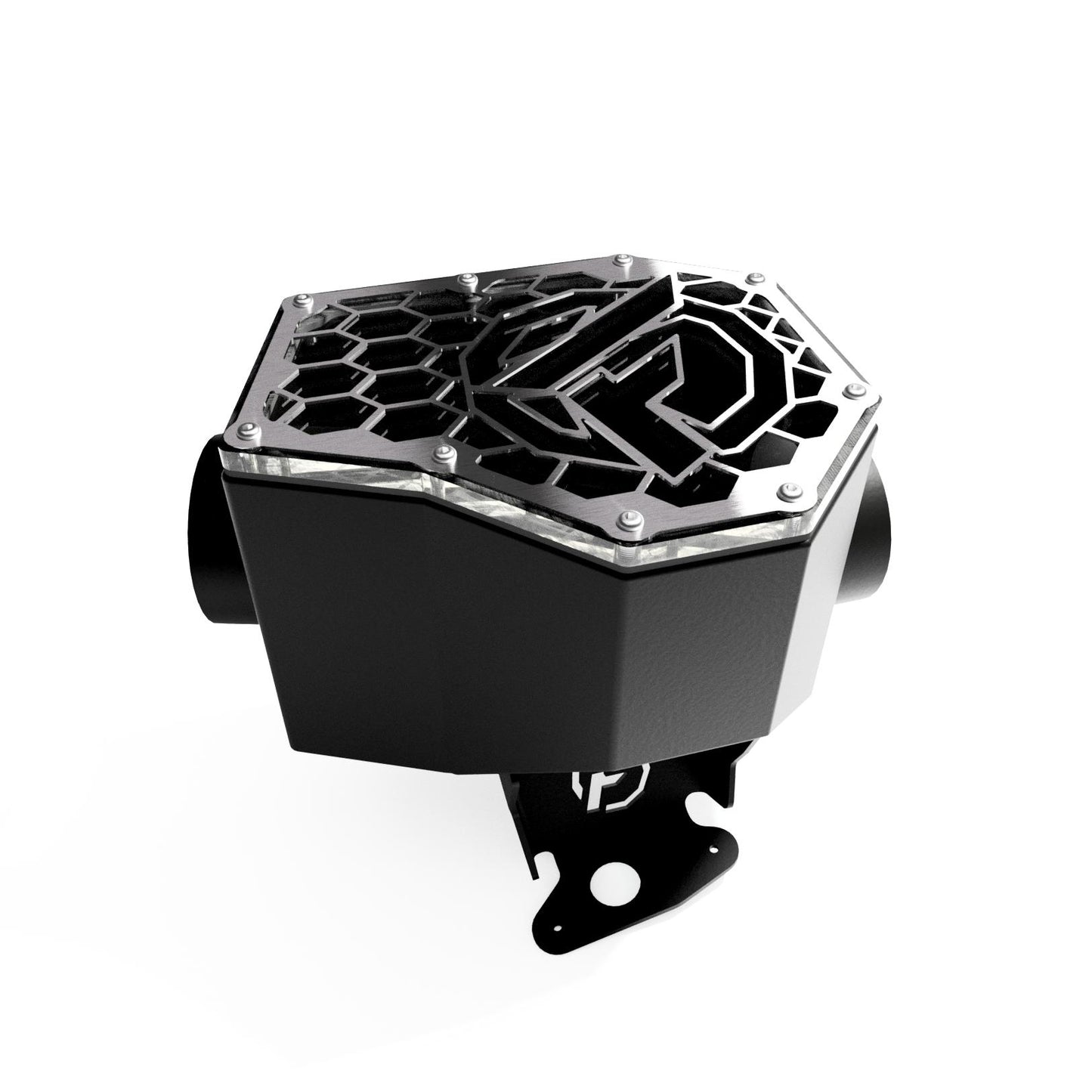

Please note: Rendered images are used as a representation of the product only. The overall product may vary slightly in general appearance and surface finish. Additional photos to come, of the kit fitted to a vehicle.
