Nissan TD42 Intake Manifold 90 Degree Elbow Adaptor

Features:

• Custom designed cast aluminium 90 degree inlet manifold adaptor/elbow
• Suits all Nissan TD42 engines
• Inlet diamtere is 2.5"
• Includes 3x 1/8th boost reference points

• Available in Raw or Powder Coated*

Our Nissan T42 Intake manifold adaptor elbow has been designed to fill the gap between very old and poorly cast elbows, and billet alloy adaptors, that frequently are not available to buy unless an intercooler kit is purchased with it.

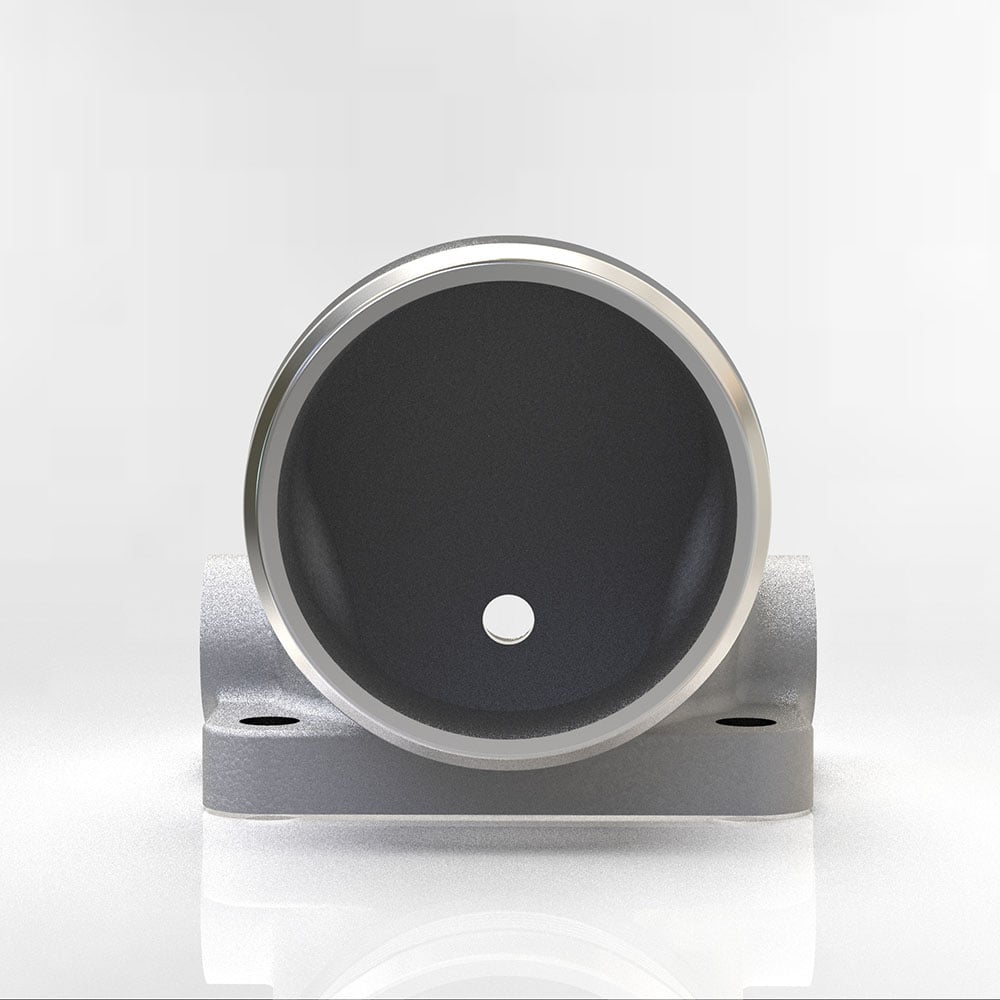

Our intake manifold adaptor inlet is 2.5" in diameter, with a completely smooth transition from the inlet through into the manifold for maximum flow. No sharp edges or rapid changes of radius for better airflow, ensuring optimal performance for your TD42 Intake Manifold.

Custom Nissan TD42 intake manifold adaptor elbow - FT Metal Casting (youtube.com)

Our ridge machined finish prevents hoses from popping off under pressure

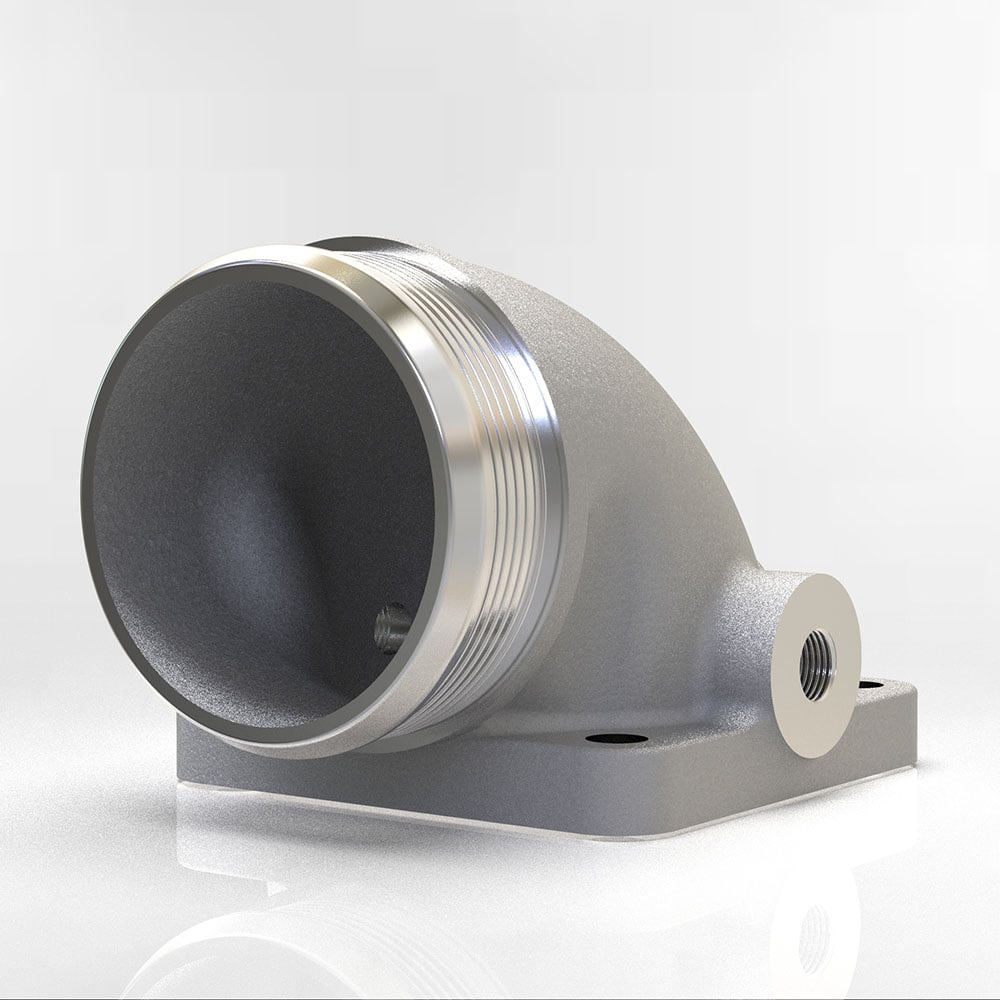

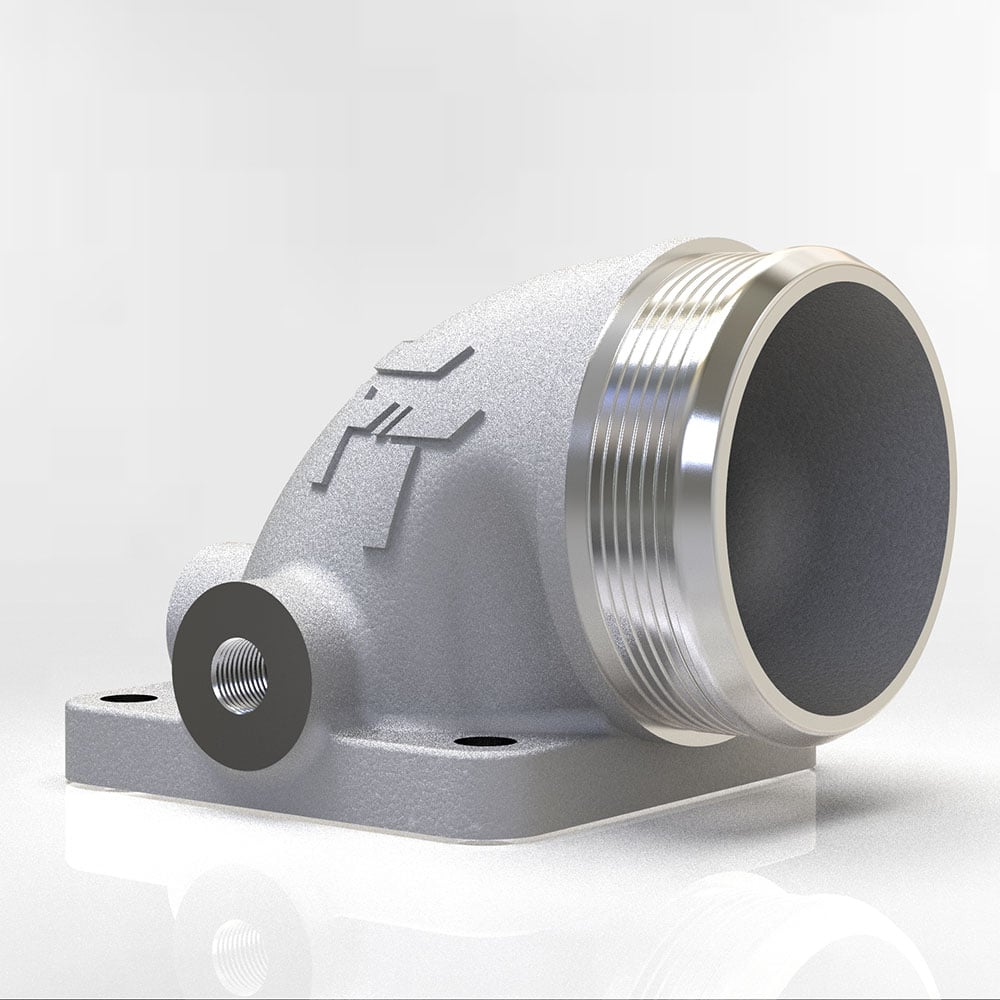

The inlet has a ridge machined finish surface to ensure maximum bite into the silicone hose. This helps to prevent hoses from popping off, unlike with smooth or poorly finished surfaces on other adaptors. This robust design makes the TD42 Intake Manifold adaptor elbow a top choice for durability.

Smooth or poorly finished surfaces are a leading cause of turbocharger failure due to a sudden overspeed event when the compressor becomes unloaded. This is why we have taken the time and expense to incorporate a ridged machine surface finish in all our high-performance adaptors that can be subject to very high boost pressures.

Other similar products use a simple cast ridge at the end of the tube, which work seemingly ok at low and moderate pressures but have been know to not perform at boost levels above 30PSI.

3 Boost reference points

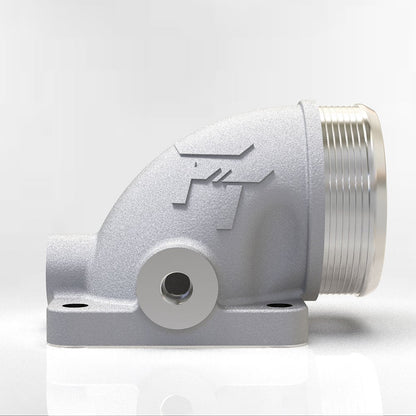

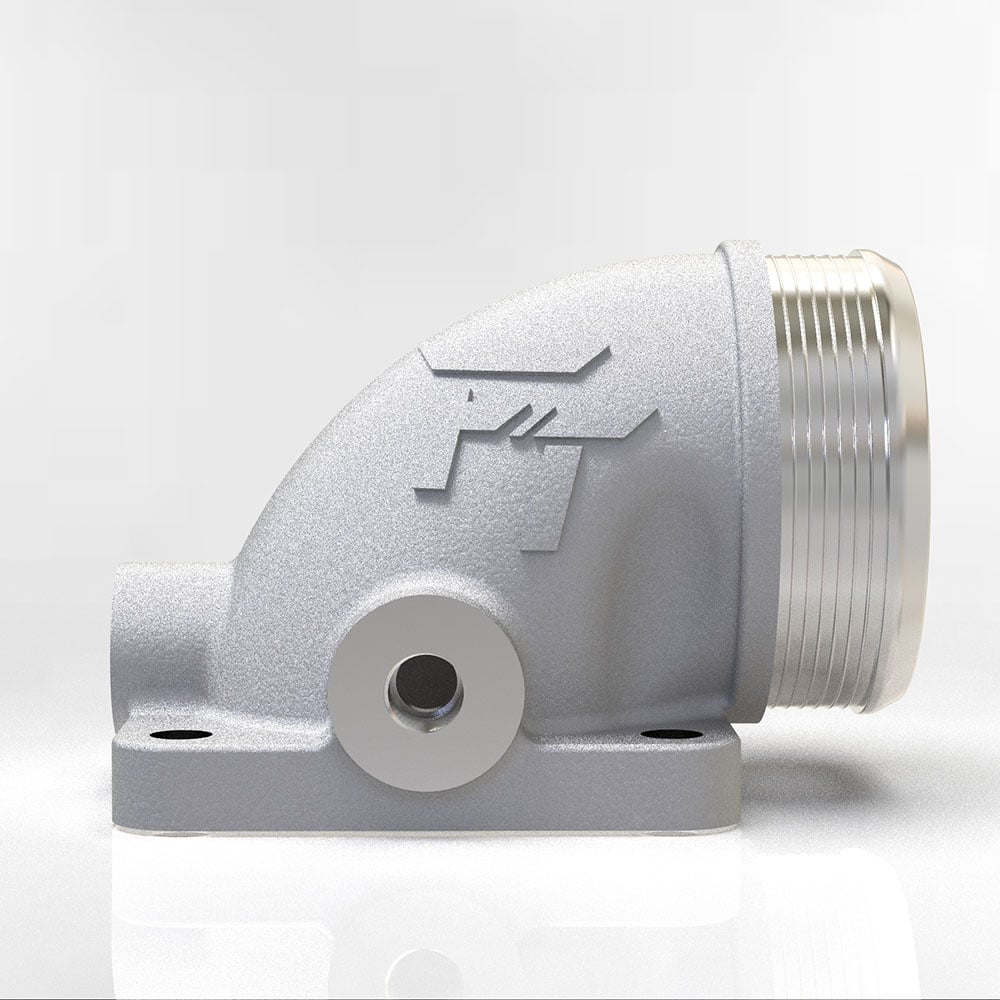

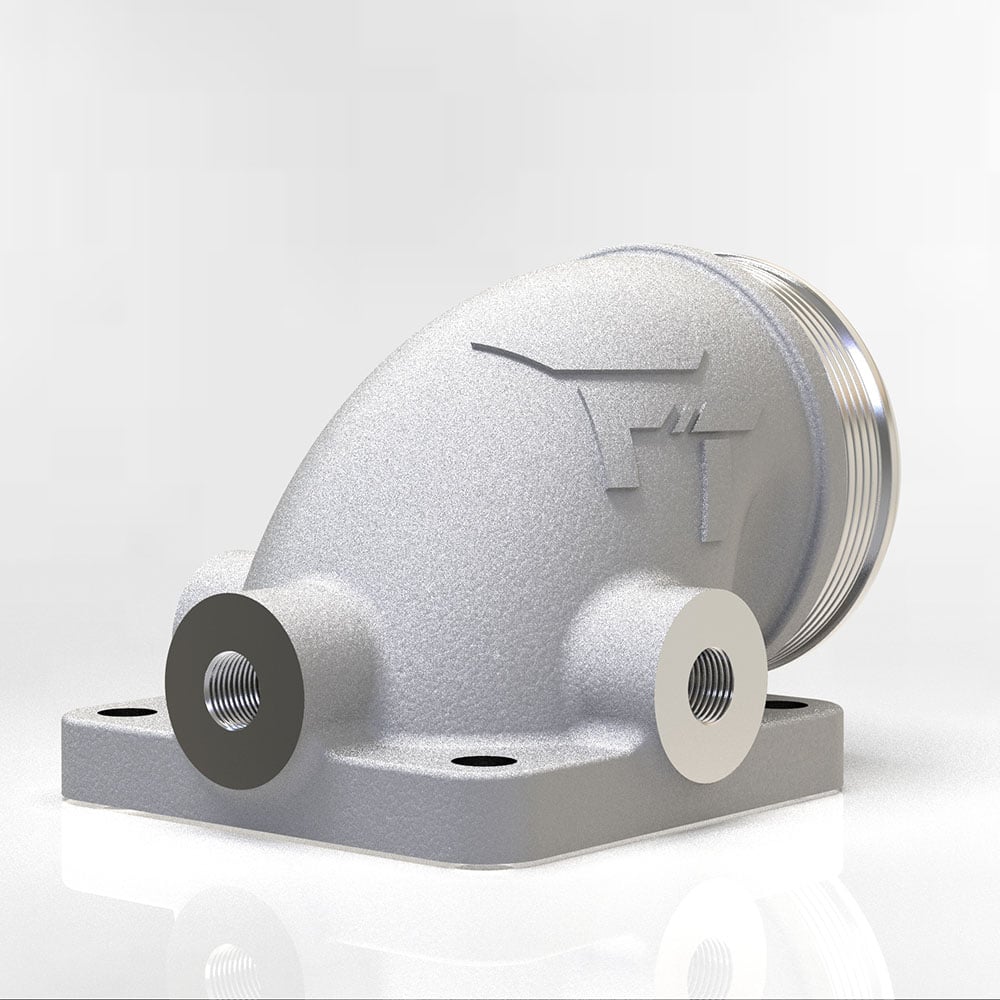

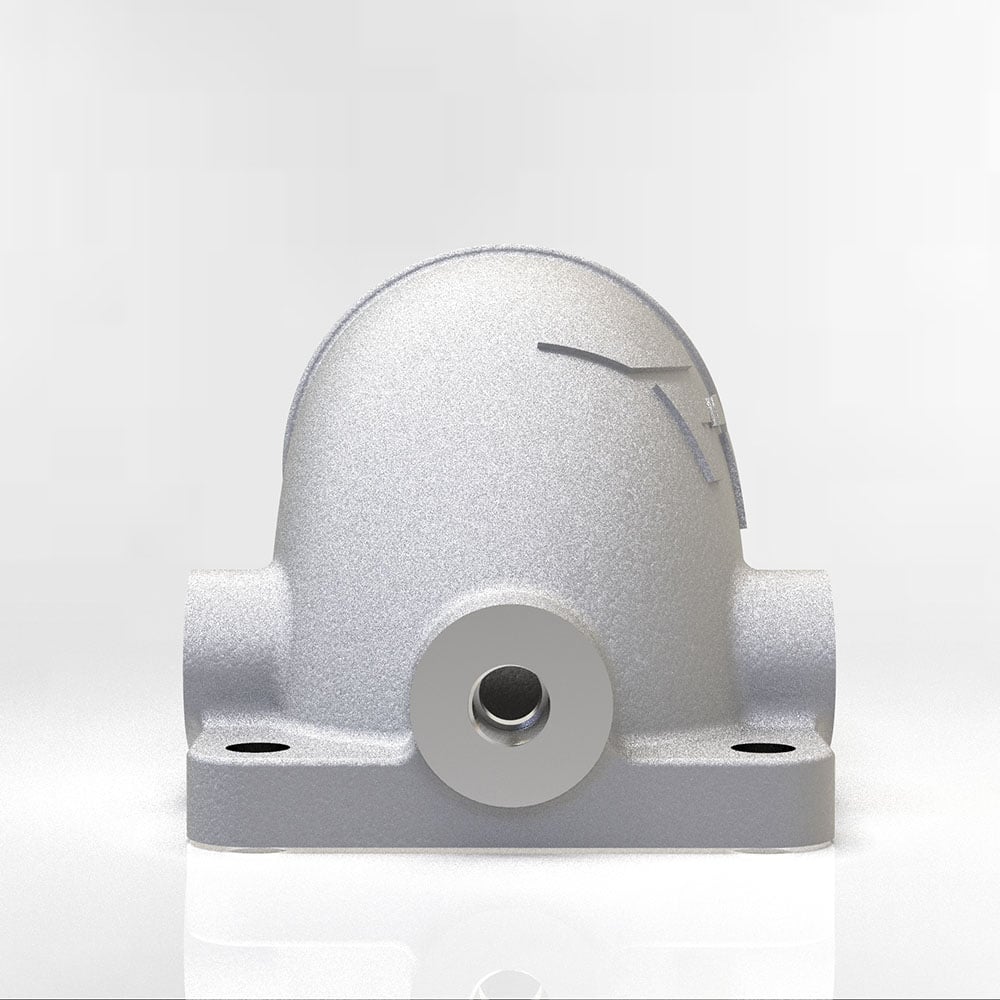

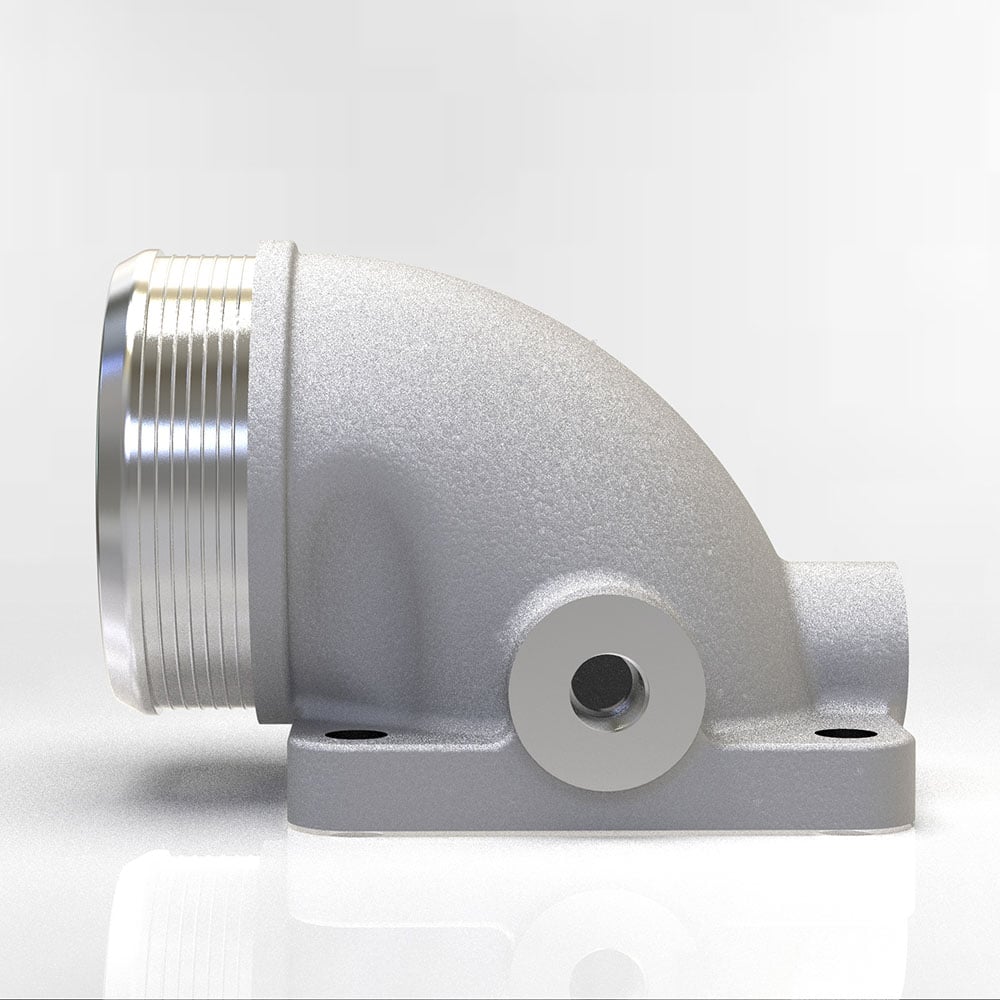

Our intake manifold adaptor elbow is manufactured from cast aluminium and has three (3) 1/8th BSP ports for boost reference points to attach a compensator, boost gauge as well as a spare. These features make it a versatile component of the TD42 Intake Manifold.

Works with common and custom top-mount intercoolers

It has been designed to work with all common top-mount intercooler kits. The concentric design allows the elbow to be rotated 90 degrees at a time to allow forward/rear/left or right facing. So, whether your intercooler kit is off the shelf or a custom job, this elbow gives the lowest possible profile for maximum clearance under the intercooler. The adaptability makes the TD42 Intake Manifold suitable for a range of intercooler setups.
