Nissan Patrol Y61 GU TD42 - Clear Top Airbox/Intake - Factory Low Mount Turbo (snout)

**IMPORTANT NOTICE**

Fitment of our products is temporarily unavailable by our team until further notice. Please refer to the Installers list HERE to find a recommended installer.

The Nissan Patrol Y61 GU TD42 kit features a clear top airbox with the intake specifically designed for the TD42 engine with the Factory Low Mount Turbo (snout). For those with our FMIC kit, the airbox/intake will only suit if your FMIC kit was purchased after 1st April 2025.

This Highflow airbox allows for increased air intake, resulting in improved engine performance. Airbox is designed to only suit the supplied 4x9" UNI-Filter: TCP2 100/200 (100mm Intake, 115-140mm OD, 200mm Long)

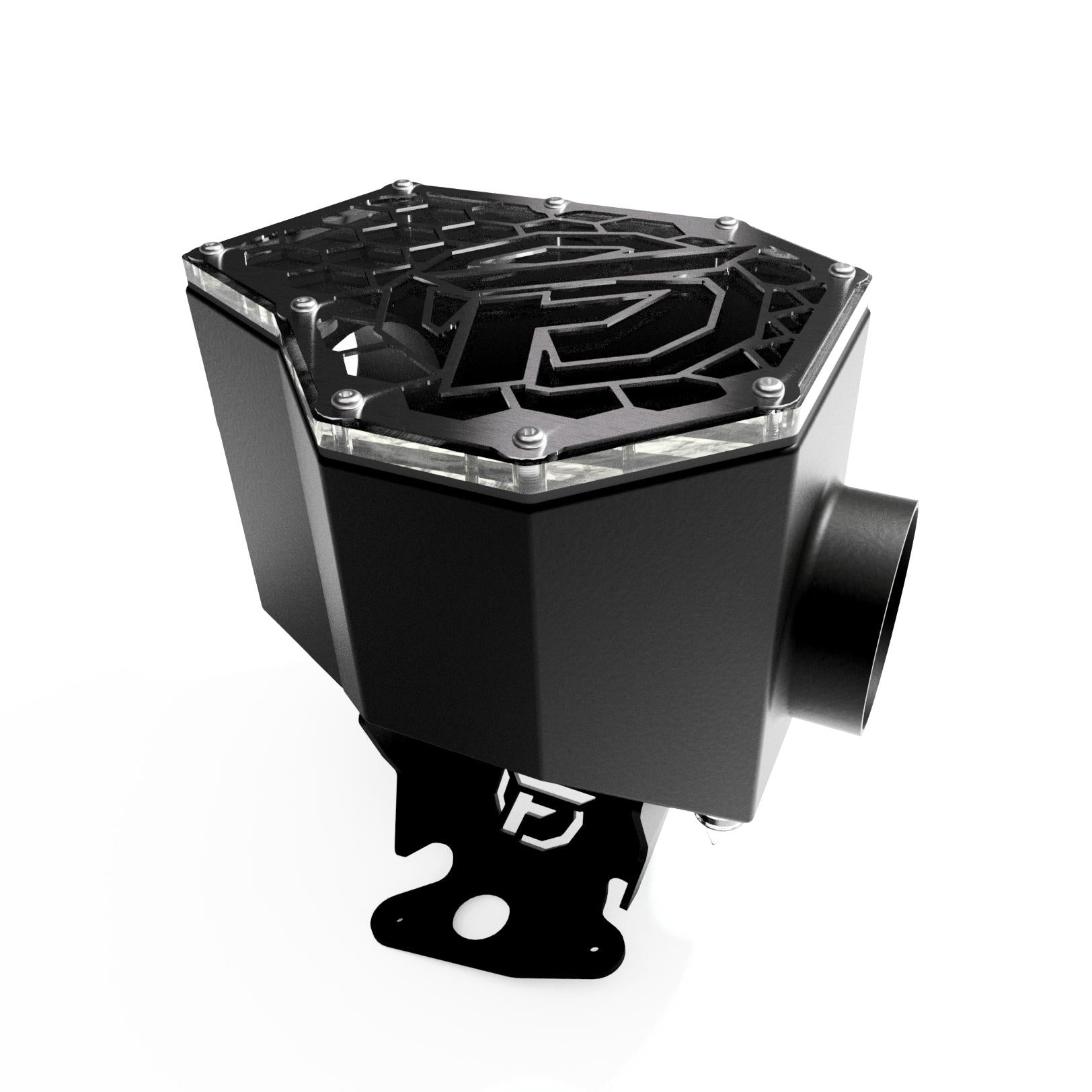

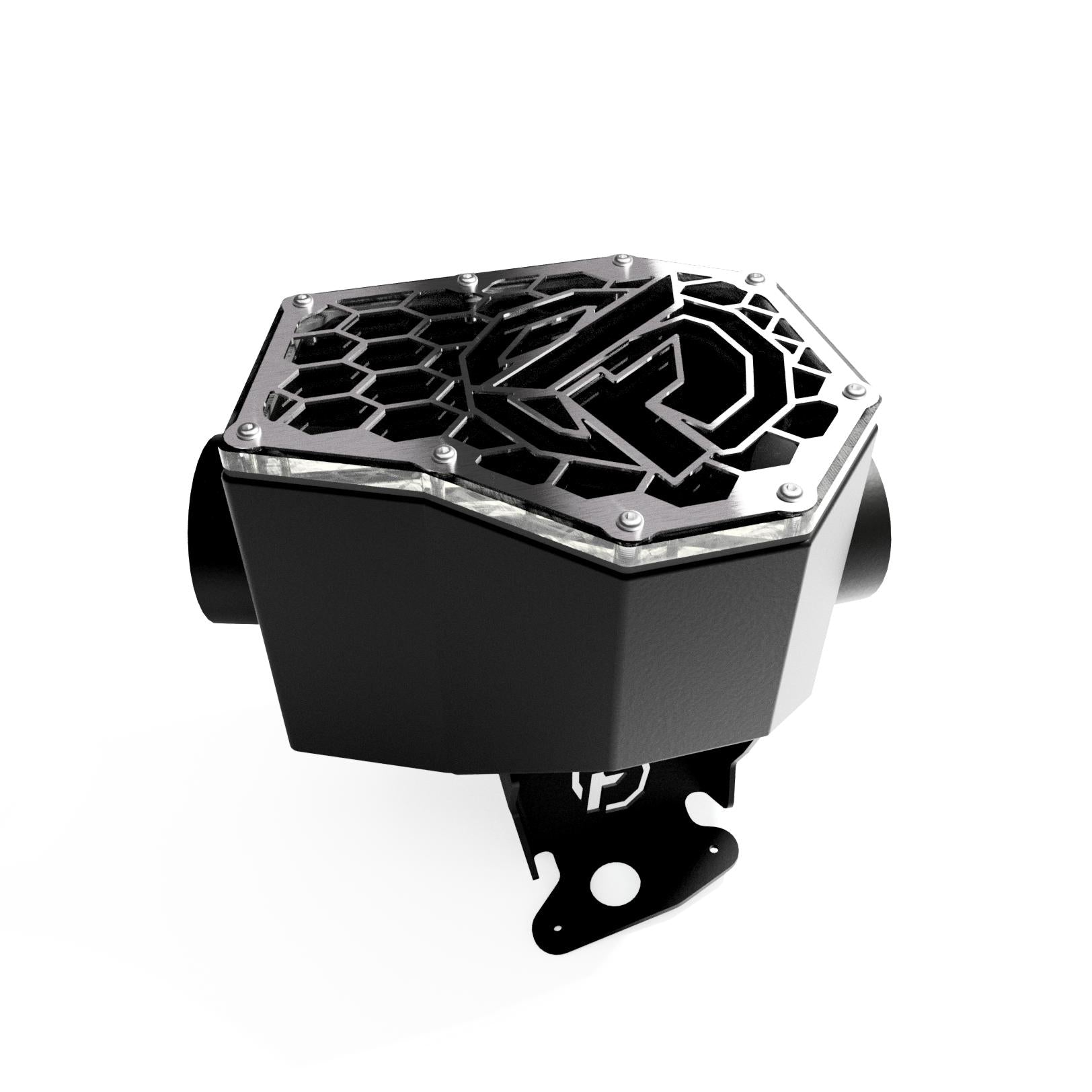

Airbox details:

• Airbox is of Ally Construction with 4" In & 4" Out
• Picks up all 3 Factory Mounts
• 10mm CNC acrylic lid with a brushed stainless dress plate & our logo.
• CNC Rubber Gasket
• Includes a 4x9" Pod UNI-Filter (only)
• Built in duck valve drain
• Suits dual battery setups
• Designed to suit with our Fabwitz FMIC kits
• Includes all mounting hardware
• Utilizes joiner of Fabwitz snorkel for airbox connection*



*Can use an existing joiner of most aftermarket snorkels to connect with airbox, provided the joiner you have is 4" or you can purchase the joiner as an add-on (+$60)

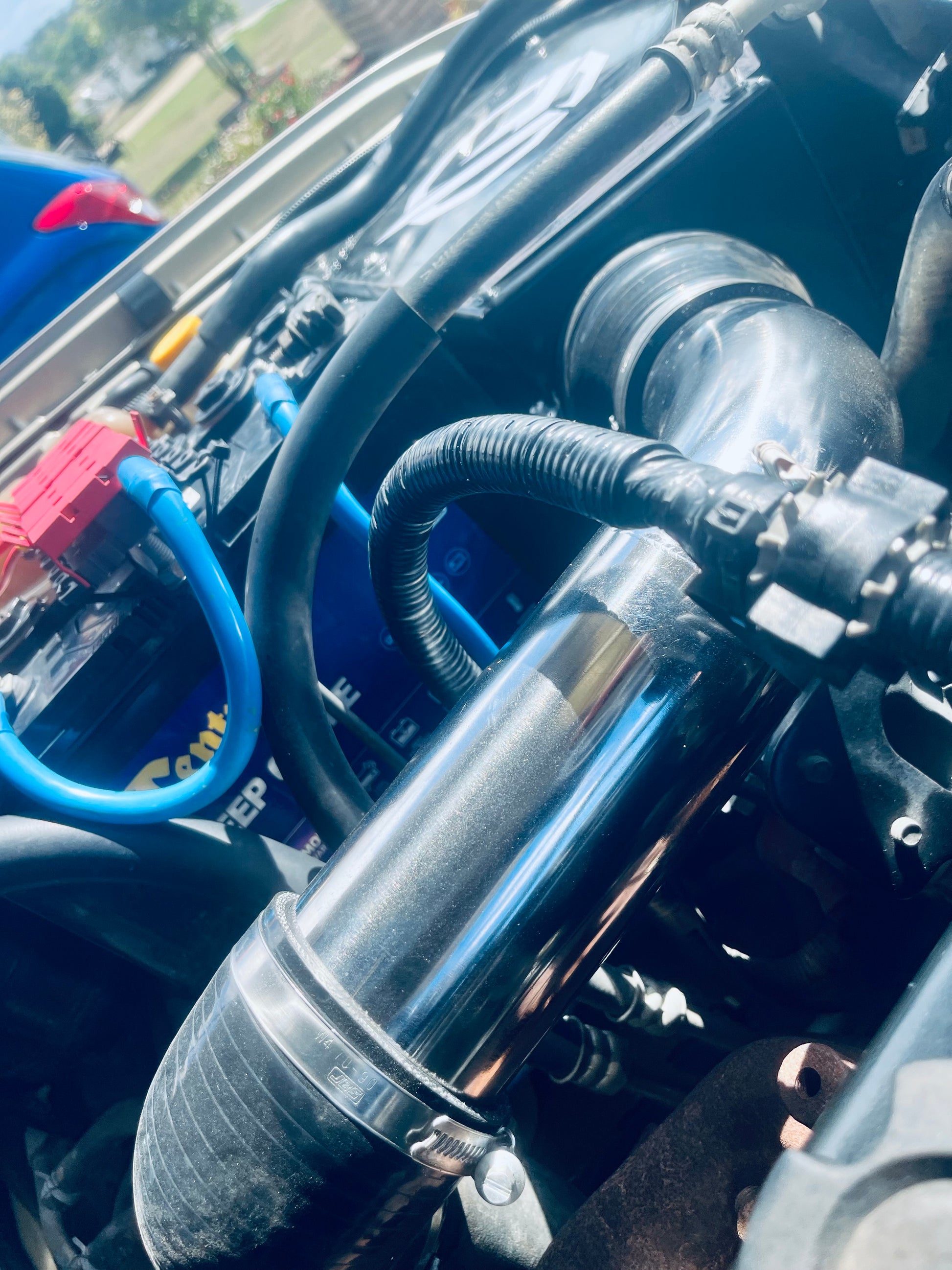

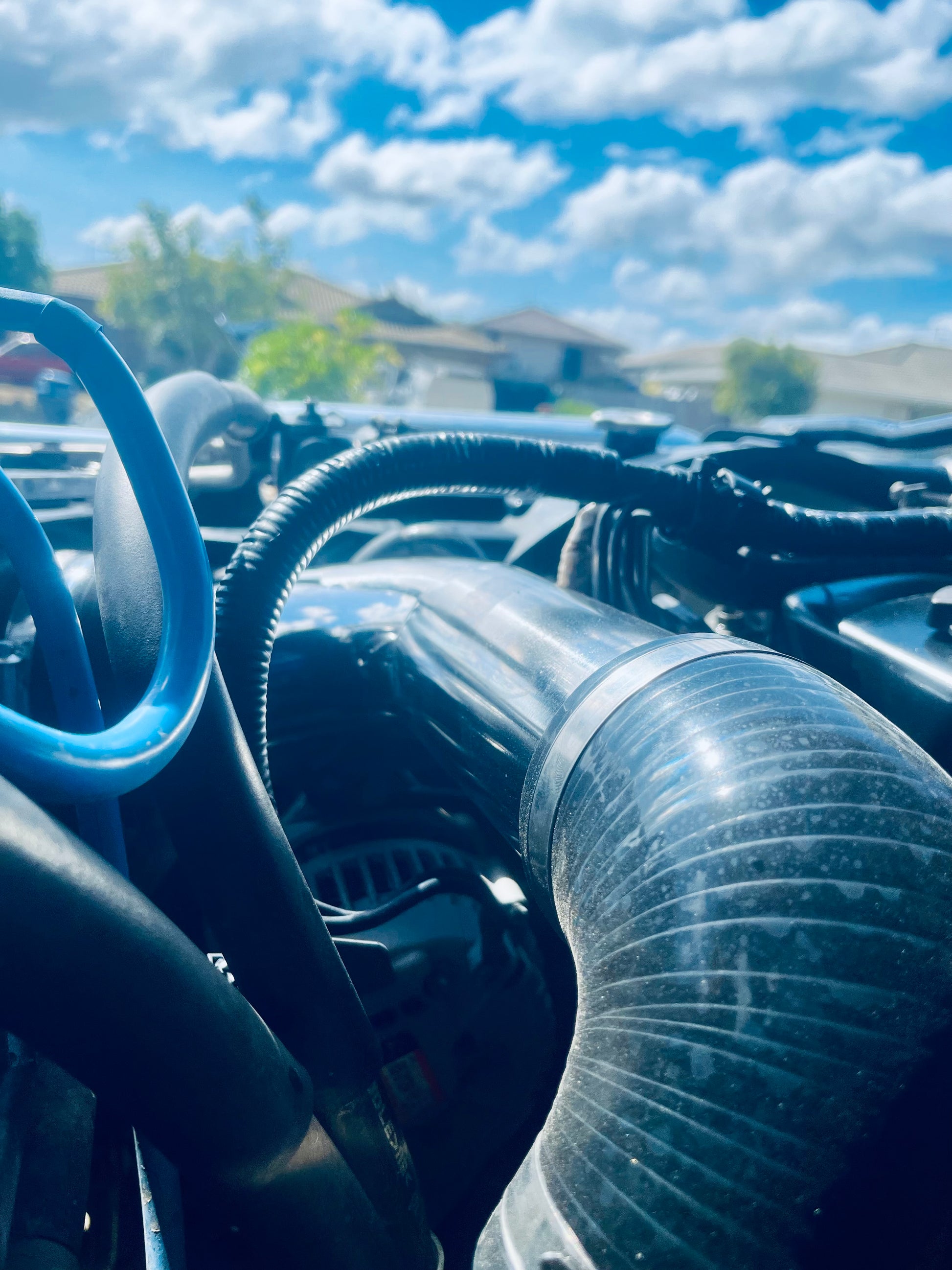

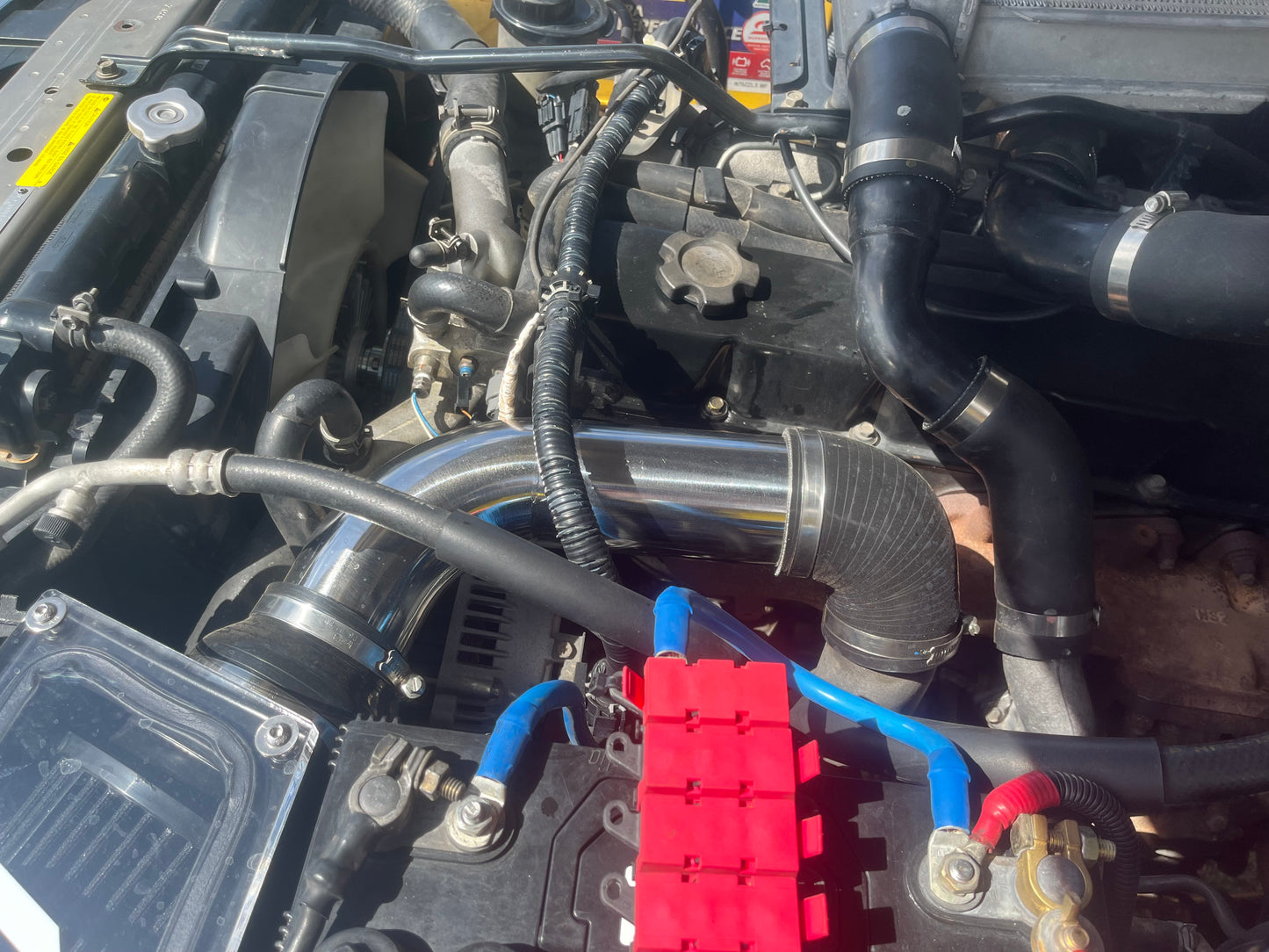

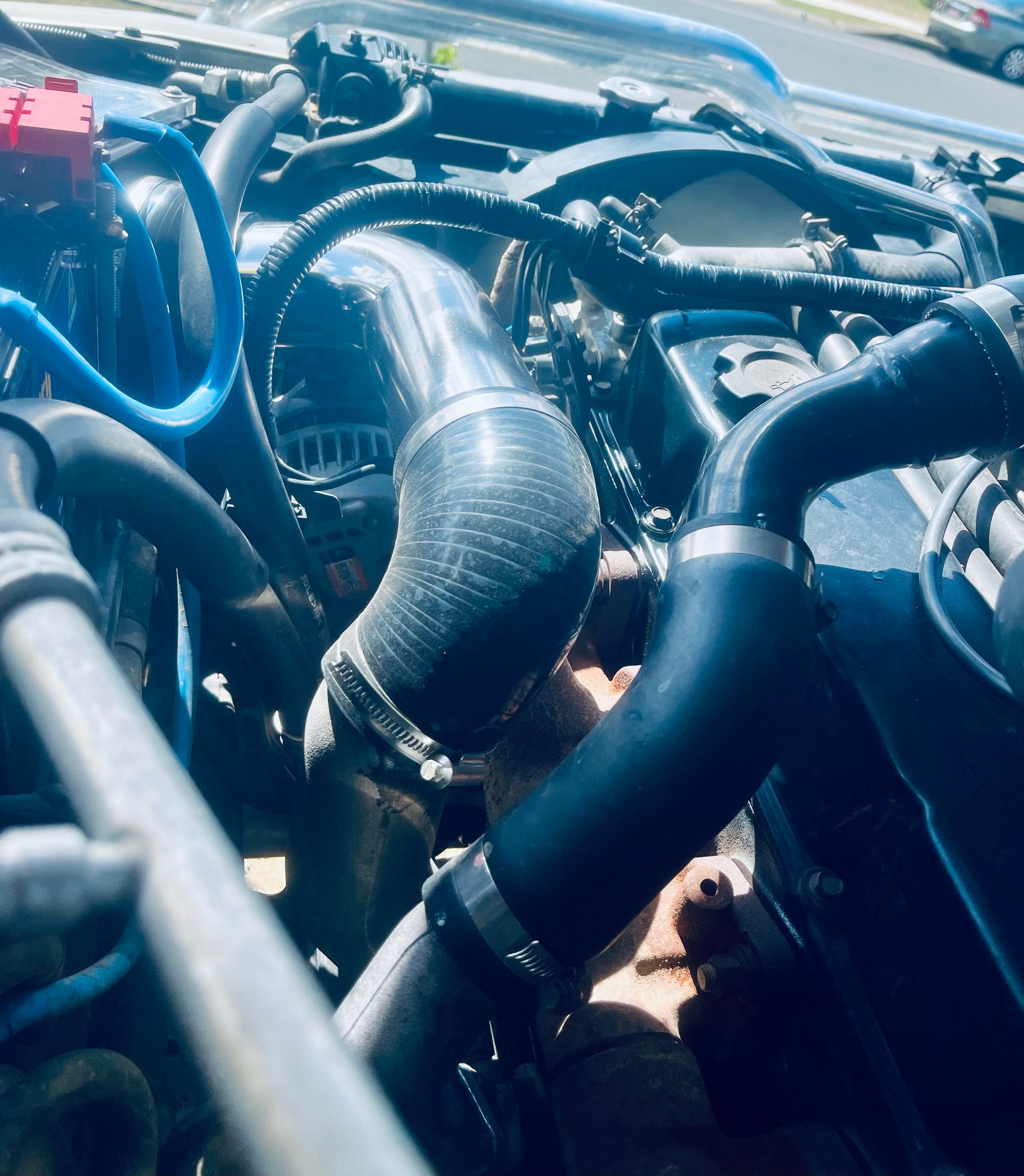

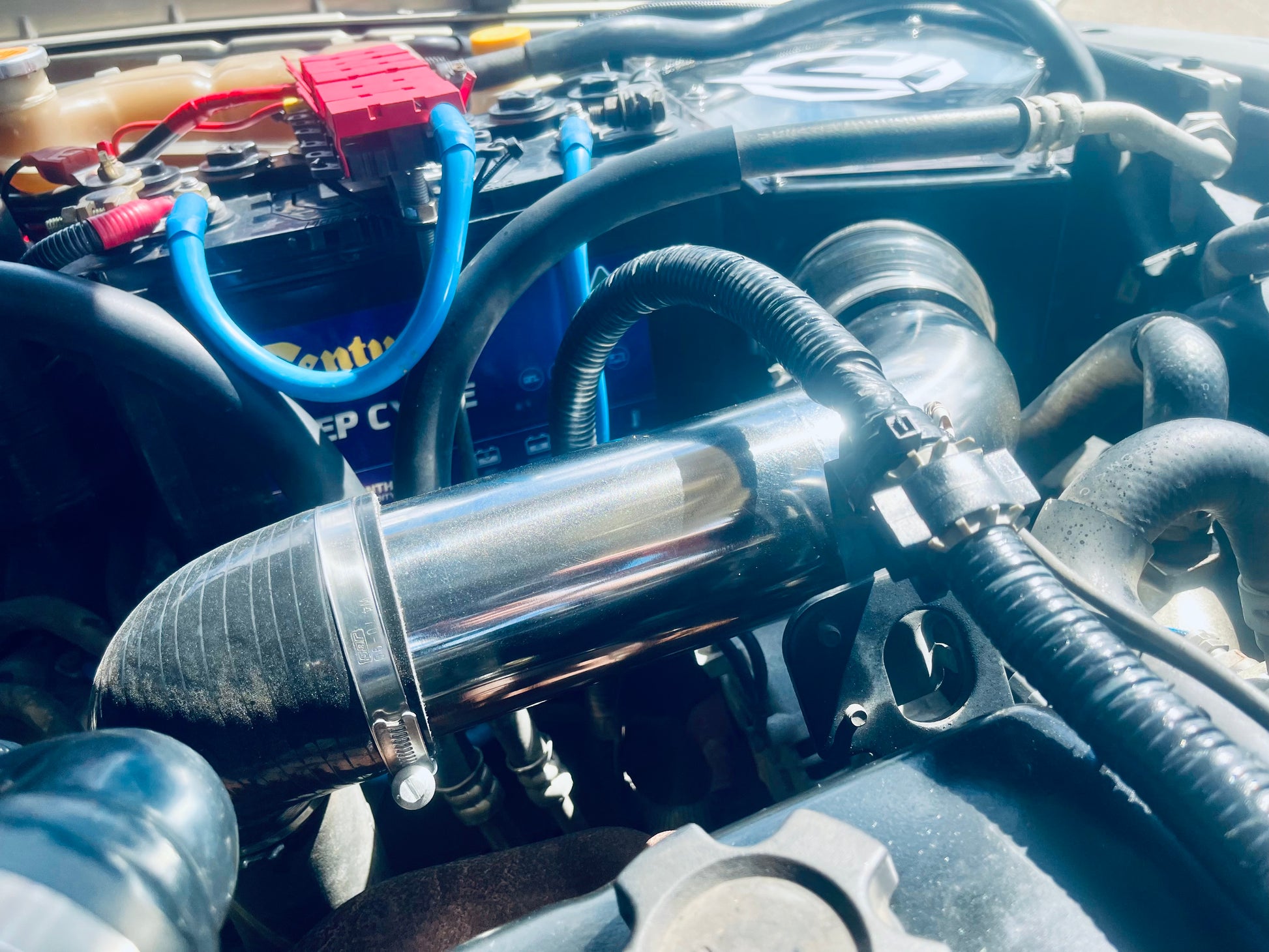

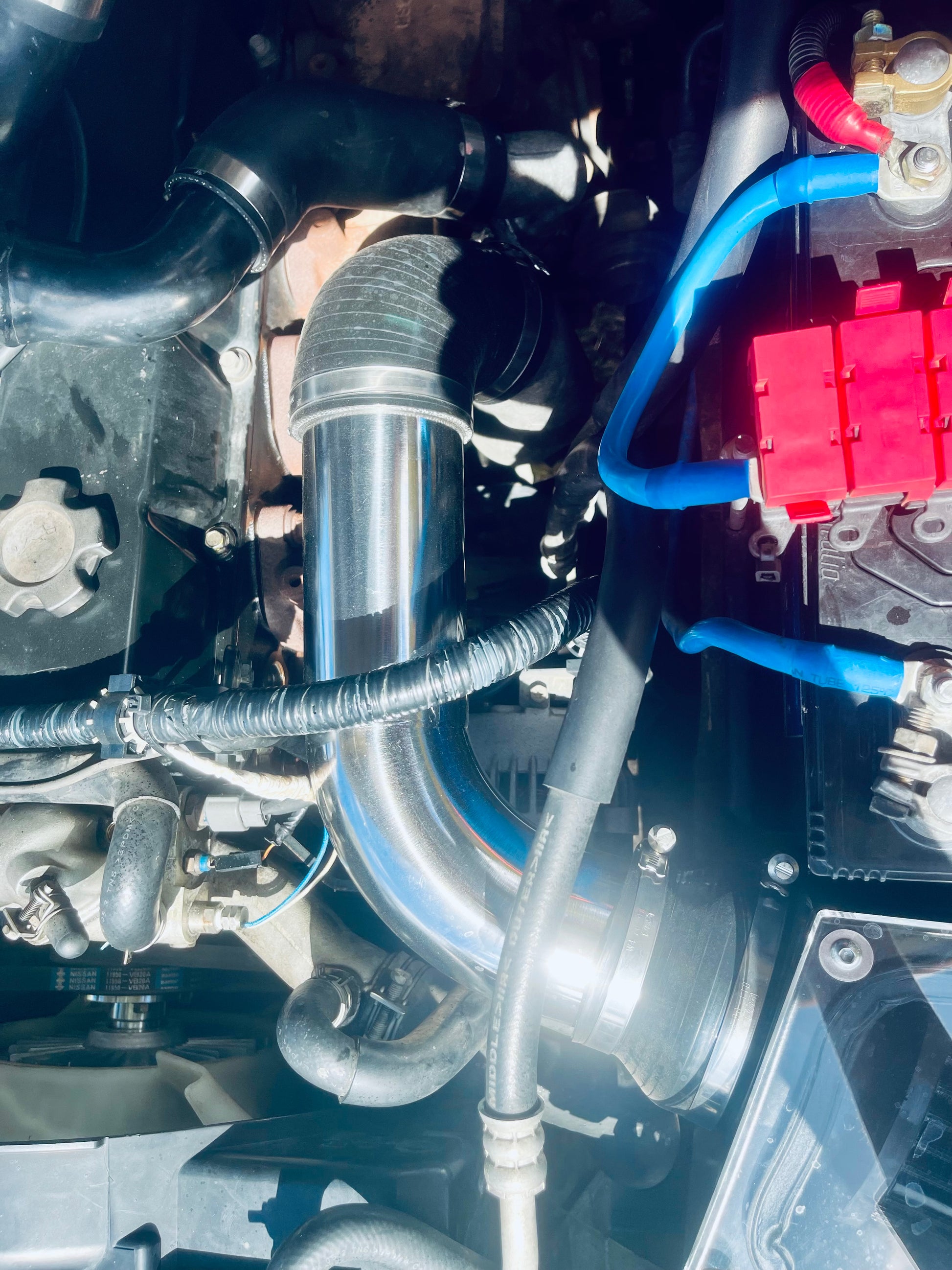

Intake details:

• Stainless Steel Construction
• 3” intake to suit Factory Low Mount Turbo (snout) only*
• Will not suit an aftermarket low mount turbo
• Includes joiner and hose clamps for intake

Finish: Texture Black (only)

Dress Plate: Brushed stainless only (no powder coating)

**Designed to suit Fabwitz snorkel and most Aftermarket snorkels on the market that have a 4" joiner already or the joiner can be purchased as an additional add-on. For those with Factory or other plastic snorkels, you will need to source a joiner to connect your snorkel to our airbox as no joiner is supplied.

Please note: Rendered images are used as a representation of the product only. The overall product may vary slightly in general appearance and surface finish. Additional photos to come, of the kit fitted to a vehicle.
