Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package
Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package

Toyota Hilux N70 - (2005 - 2014) - Short Entry Snorkel & Clear Top Airbox Package

$1,615.00
$1,615.00
Sold Out
Tax included. Shipping calculated at checkout.

**IMPORTANT NOTICE**

Fitment of our products is temporarily unavailable by our team until further notice. Please refer to the Installers list HERE to find a recommended installer.



(made to order)



SNORKEL:

  • Size: 4"
  • Style: Short Entry
  • Stainless Steel construction
  • Weld Type: Seamless
  • Finish: Powder Coated (Satin & Gloss Black only)

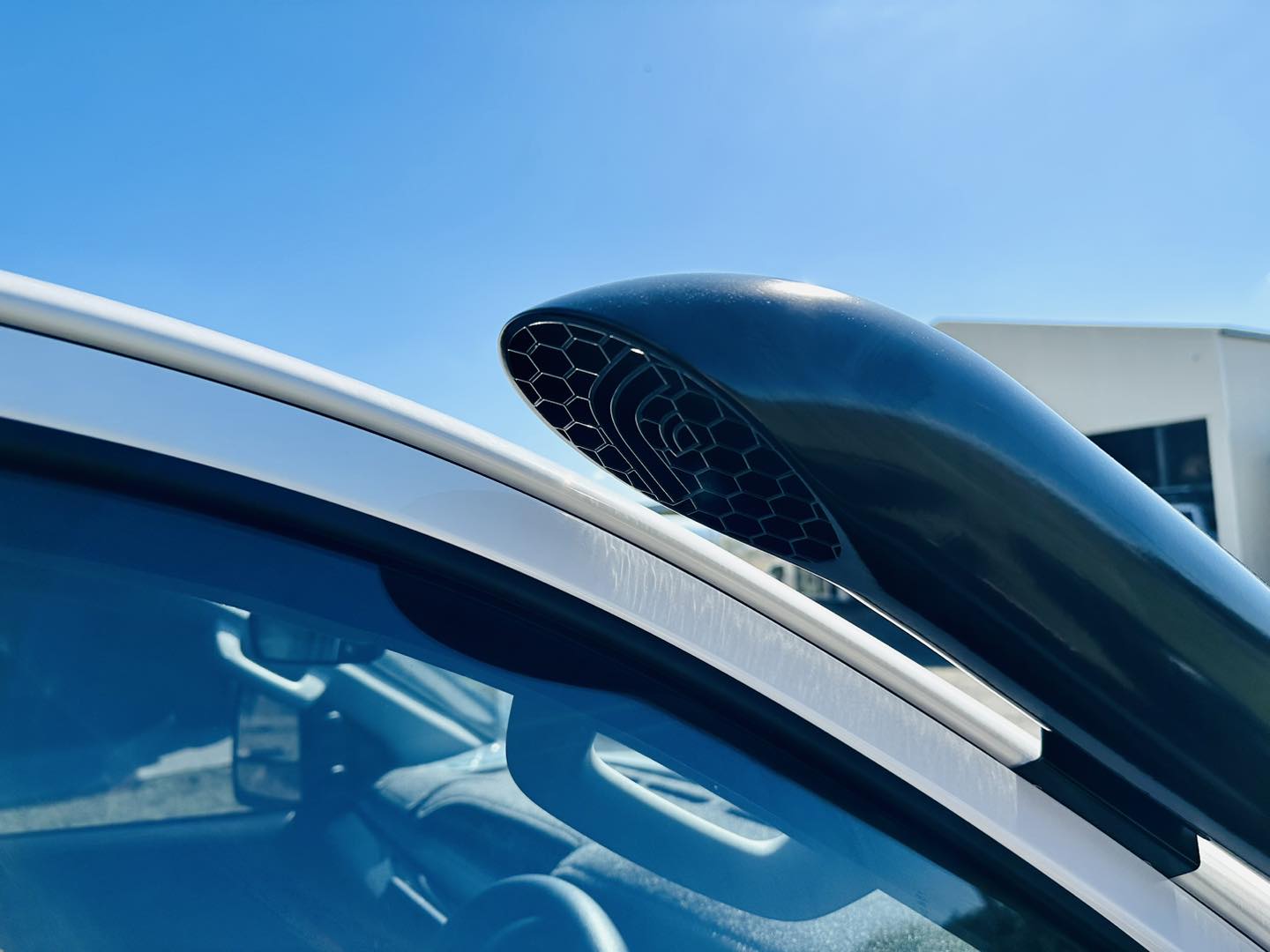

  • End Cap Shape: Round End OR Low Cut End
  • Designed to suit a vehicle with a blank guard (no holes)



AIRBOX:

  • Airbox is of Alloy Construction with 4" In & 3" Out
  • Designed to suit Factory Intake only, utilizing the intake connecting joiner
  • Suits With & should suit those Without ABS
  • Utilizes factory mounting points
  • 10mm CNC acrylic lid with a brushed stainless steel dress plate & our logo
  • CNC Rubber Gasket
  • Includes a 3" Pod Uni Filter
  • Built in Duck valve drain
  • Includes all mounting hardware



Airbox finish: Texture Black only.

Dress Plate: Brushed stainless only (no powder coating)



Please note: Rendered images of the clear top airbox are used as a representation of the product only. The overall product may vary slightly in general appearance and surface finish. Trimming is required within the guard and/or engine bay, please contact us prior to purchase for further information to ensure this is suitable for you.



End Cap Design: All snorkels come with our standard Fabwitz "f" logo cap. If you would like one of our other designs, you must select from our "Accessories & Merchandise" category.

General lead times range from as little as 1 week, up to 6 weeks. This is dependent on the individual product itself. Please refer to our "Shipping/Collection" information.

Hand crafted and made to order.
We use 316 graded stainless steel for this snorkel and high-grade Ally for the airbox.

We include a welded 3mm end cap for the snorkel in our brand logo as standard. If you are wanting a more custom design for your end cap, or wish to customize your order a bit more, please contact us directly via our "Contact Us" form.

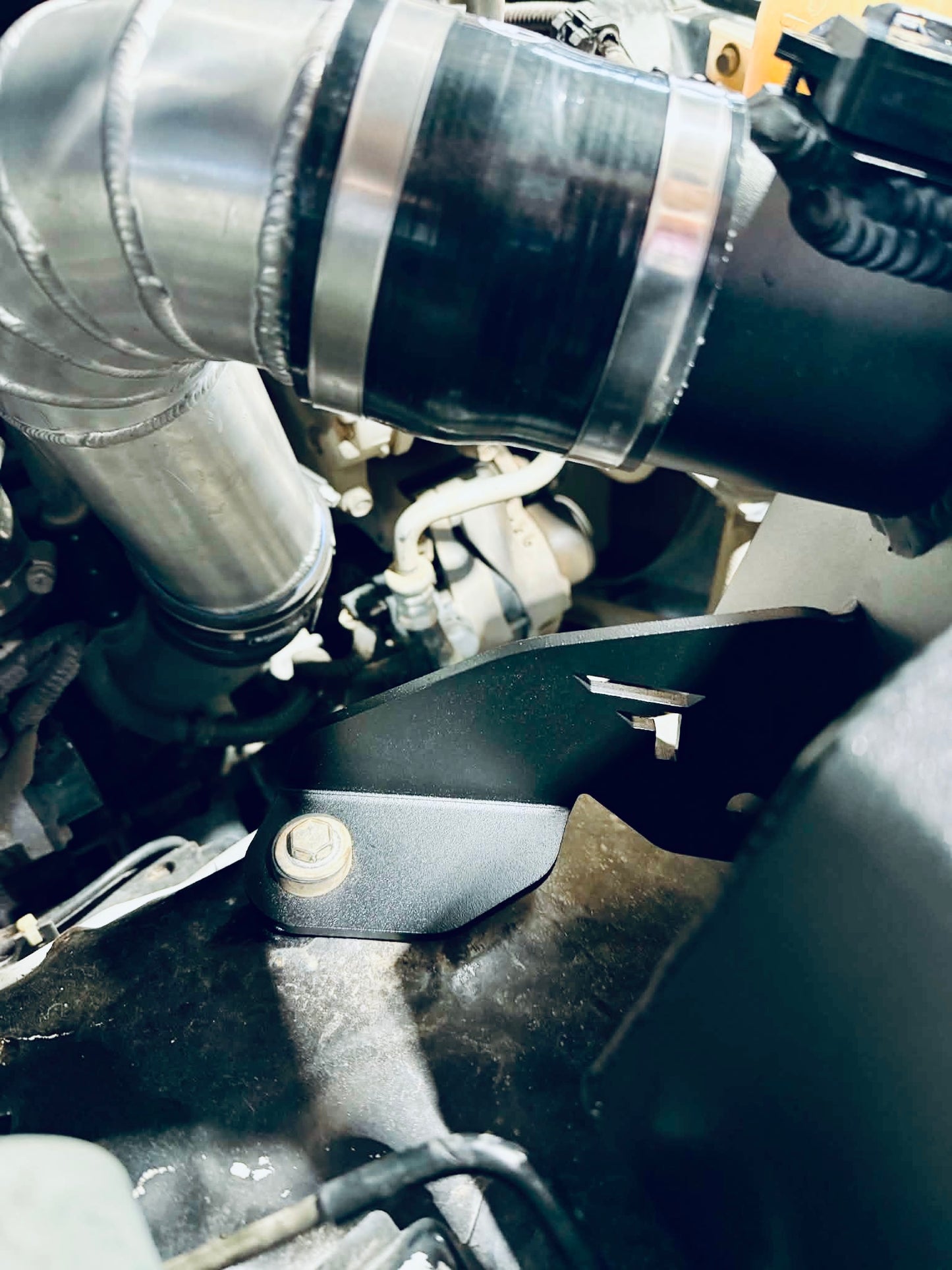

The plumbing kit supplied includes all parts needed to connect our snorkel and airbox together.

- Template
- Pinch Weld
- Silicone Joiners
- Clamps
- Mounting Bolts
- Inner Guard Piece (selected vehicles)
- Engine Bay Piece (selected vehicles)

Please note, a select few of our templates are hand drawn on paper. We have found paper has been the best way for us to supply our templates, as it is easier to manipulate, and provides a more accurate way of prepping the vehicle for fitment.

Please refer to our "Returns & Refunds" Policy regarding Change of Mind.
