Toyota Landcruiser 75 Series (1HZ Engine) - 4" Seamless Powder Coated Snorkel & Airbox Package
- Regular Price
- $1,930.00
- Sale Price
- $1,930.00
- Regular Price
- Unit Price
- Translation missing: en.general.accessibility.unit_price_separator
IMPORTANT NOTICE**

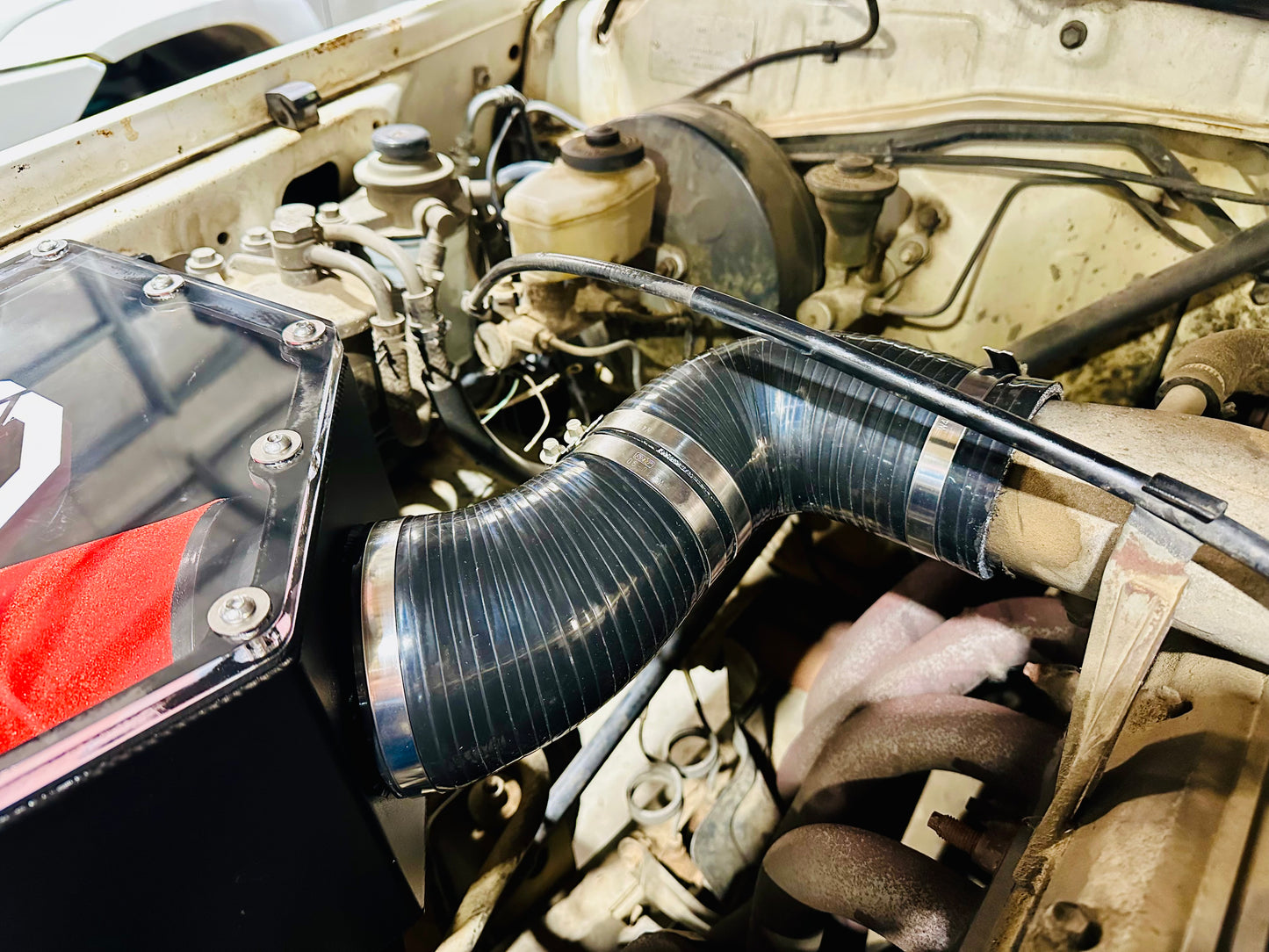

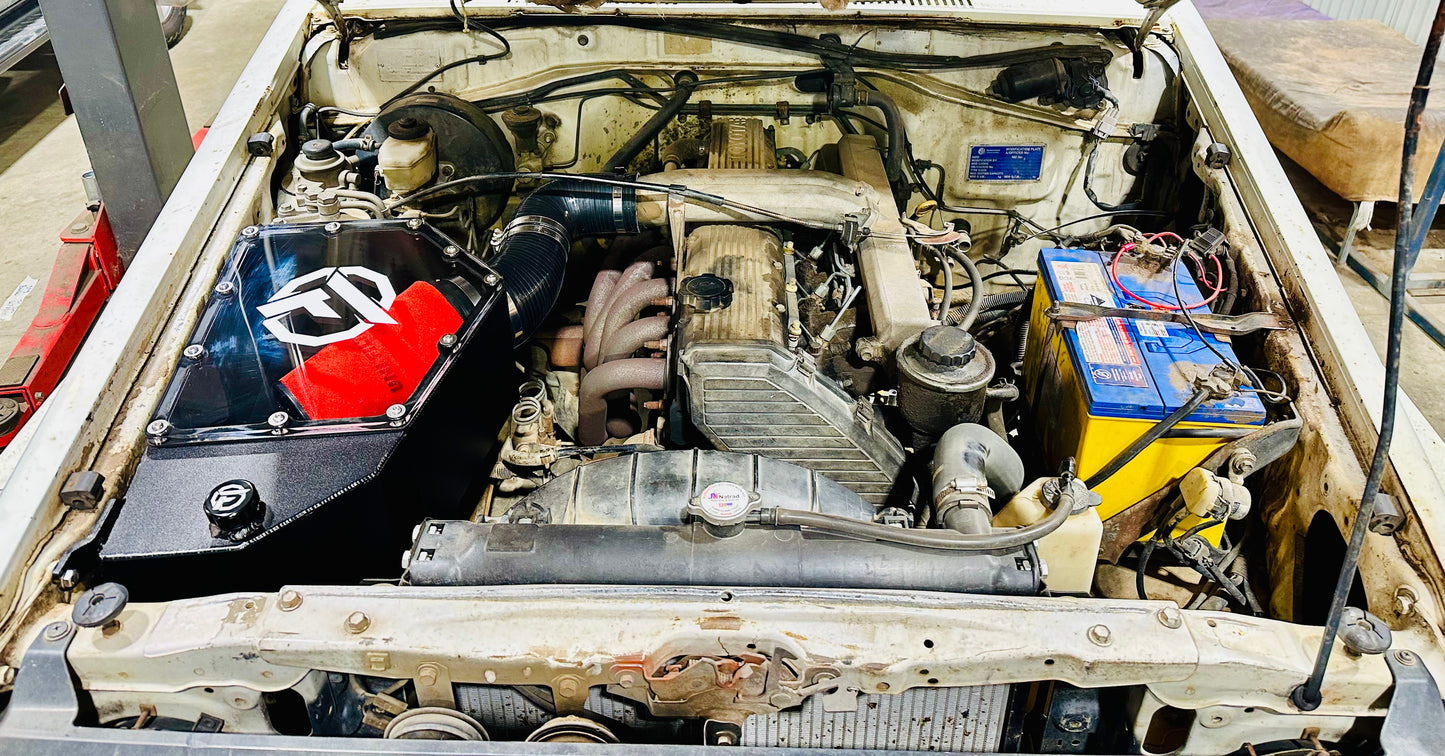

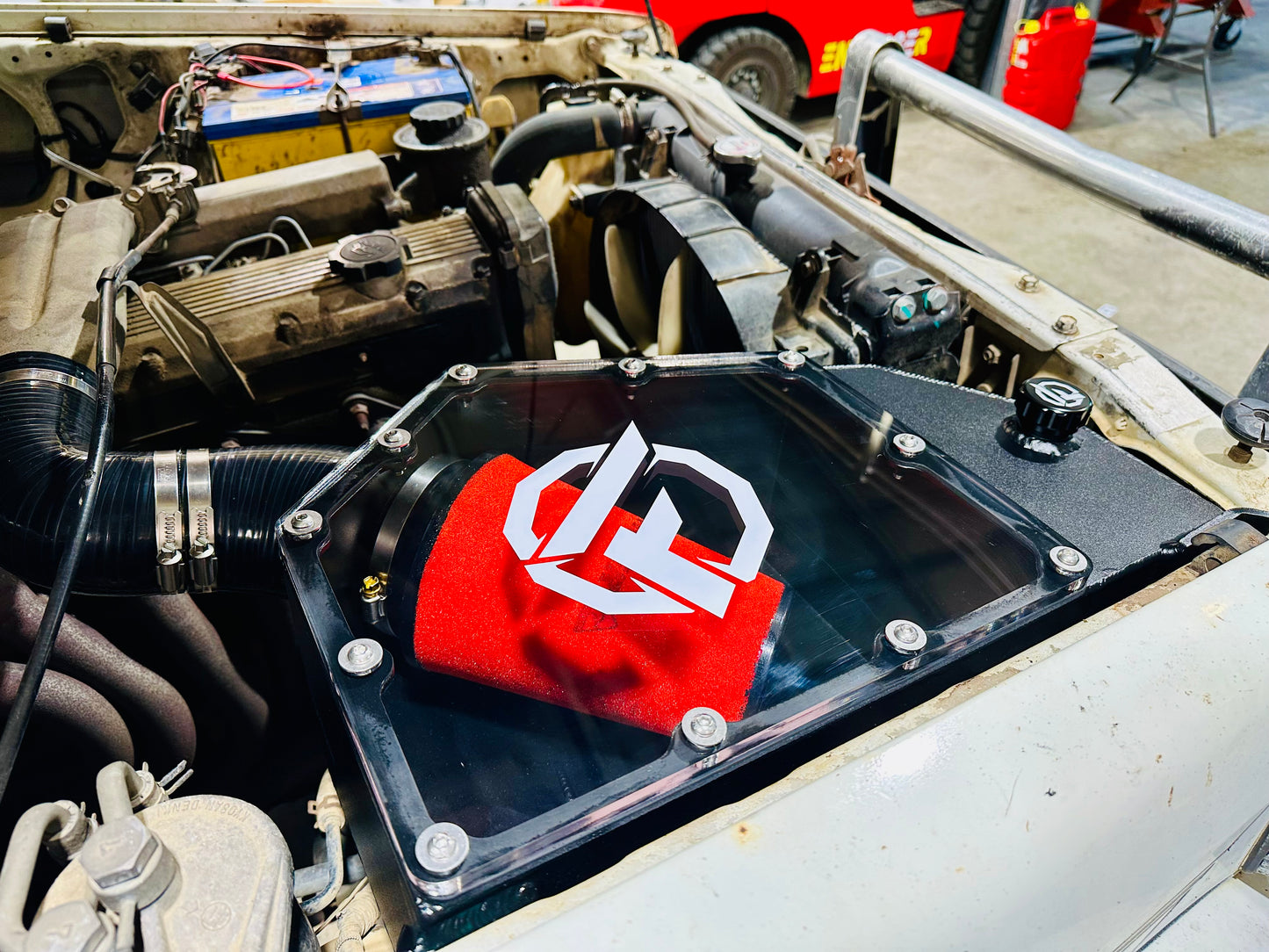

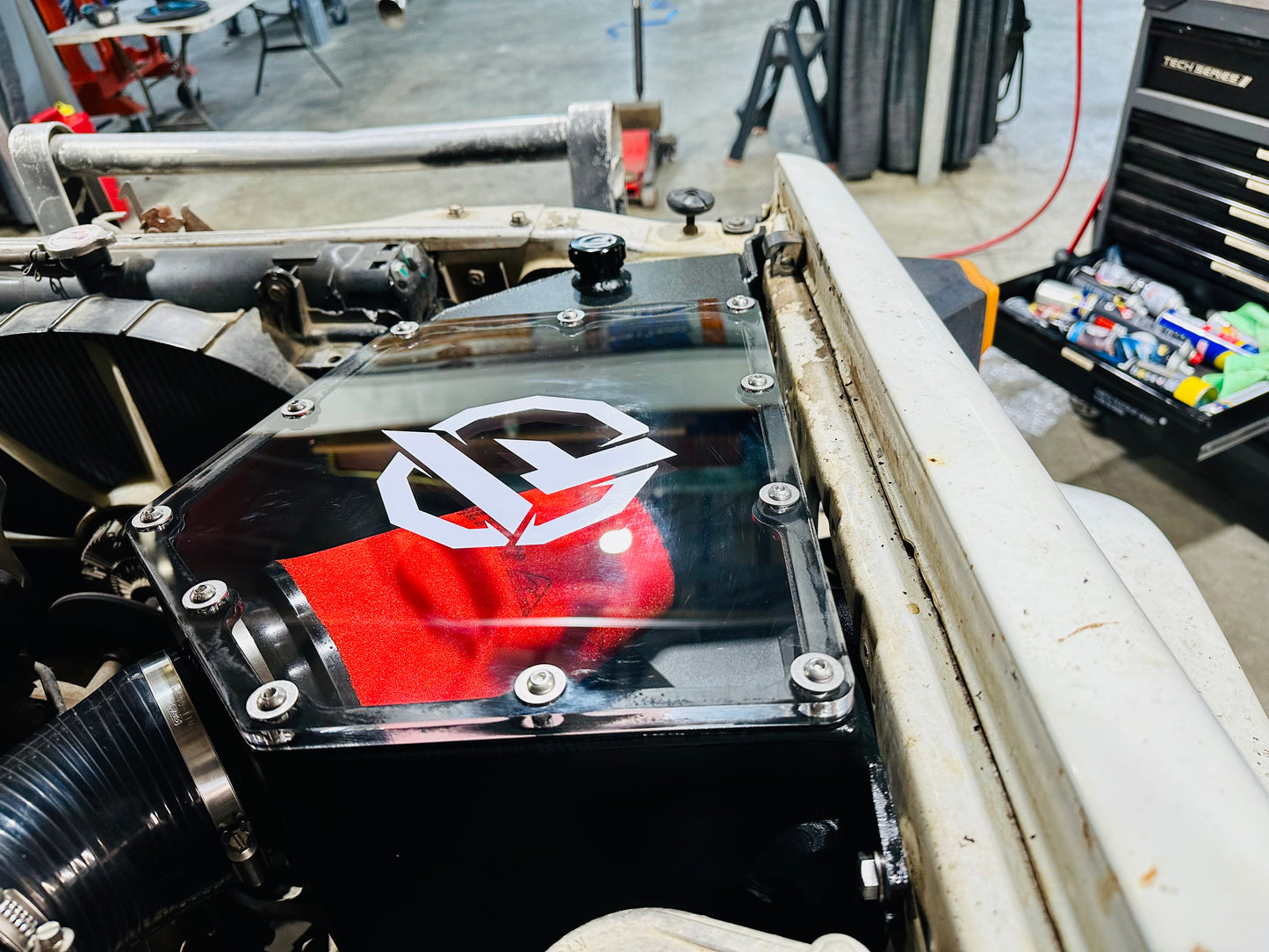

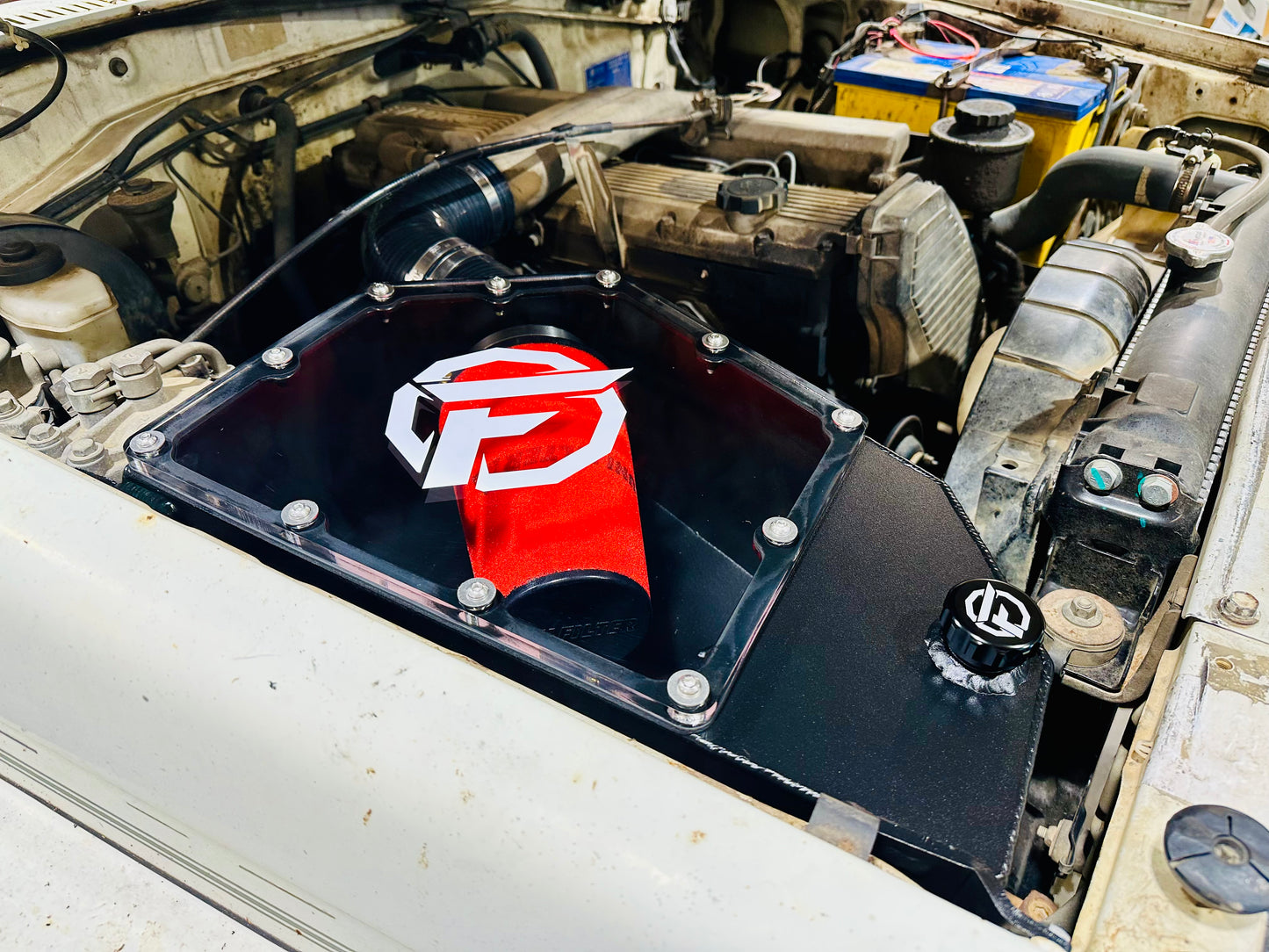

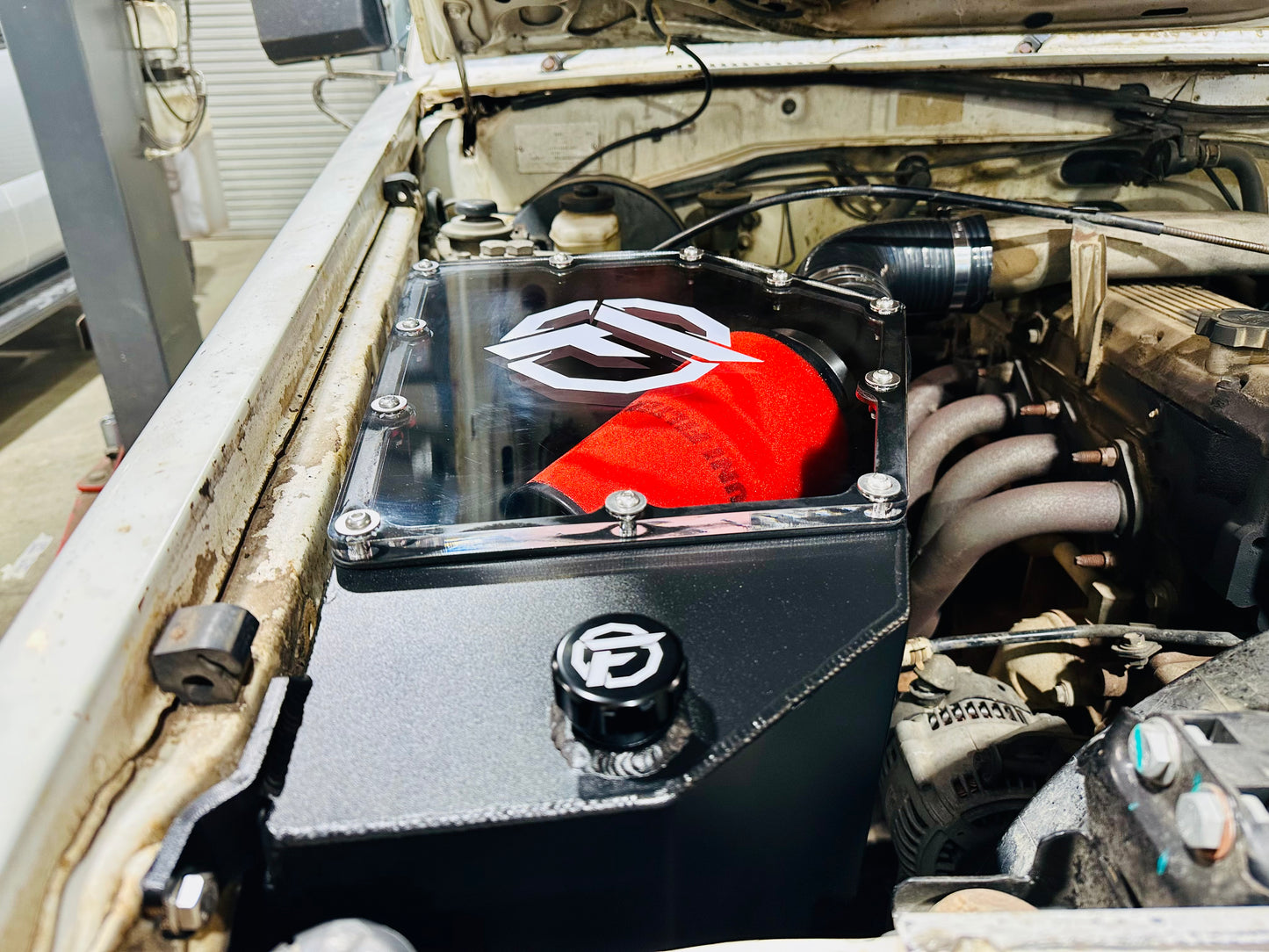

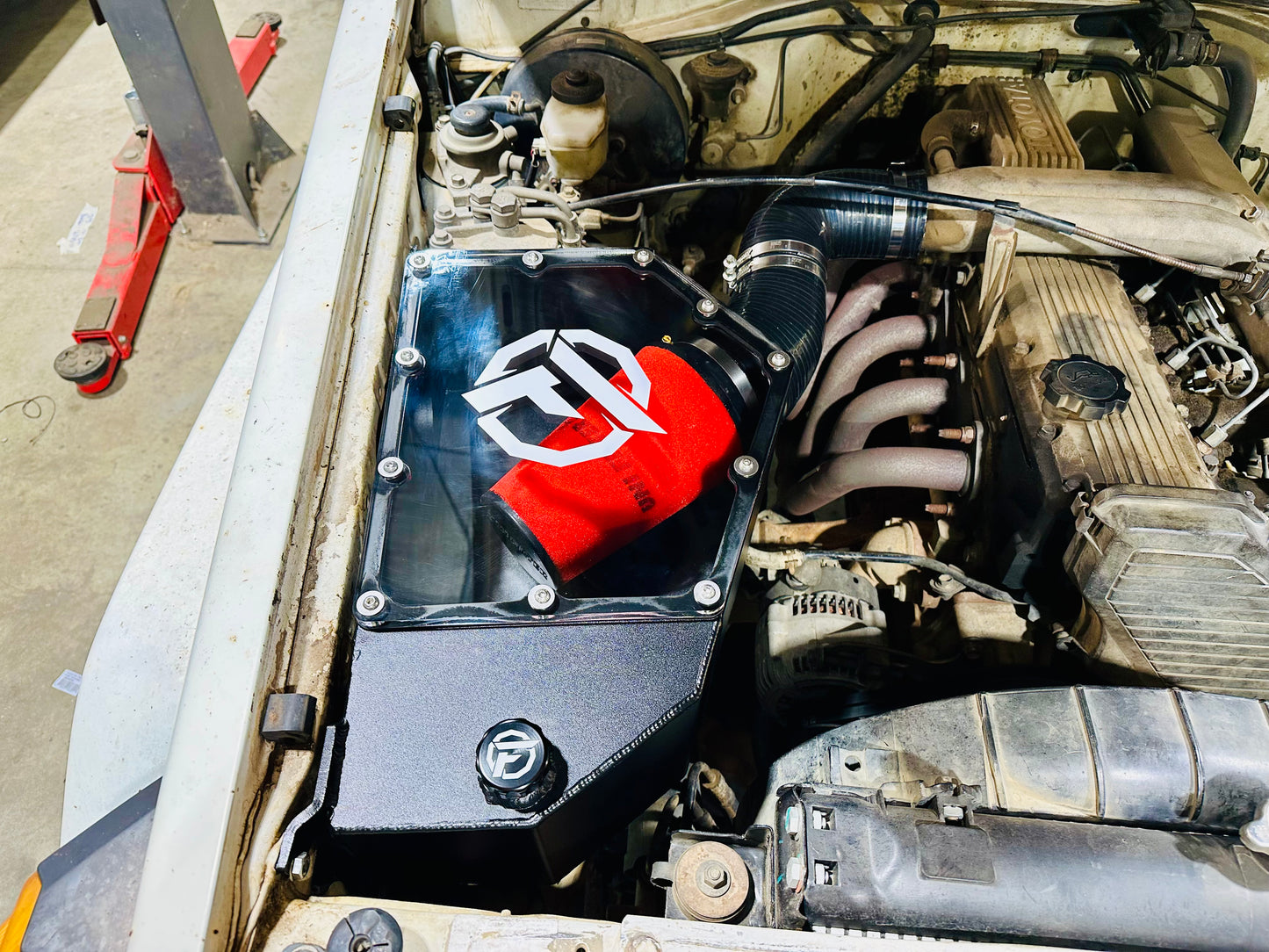

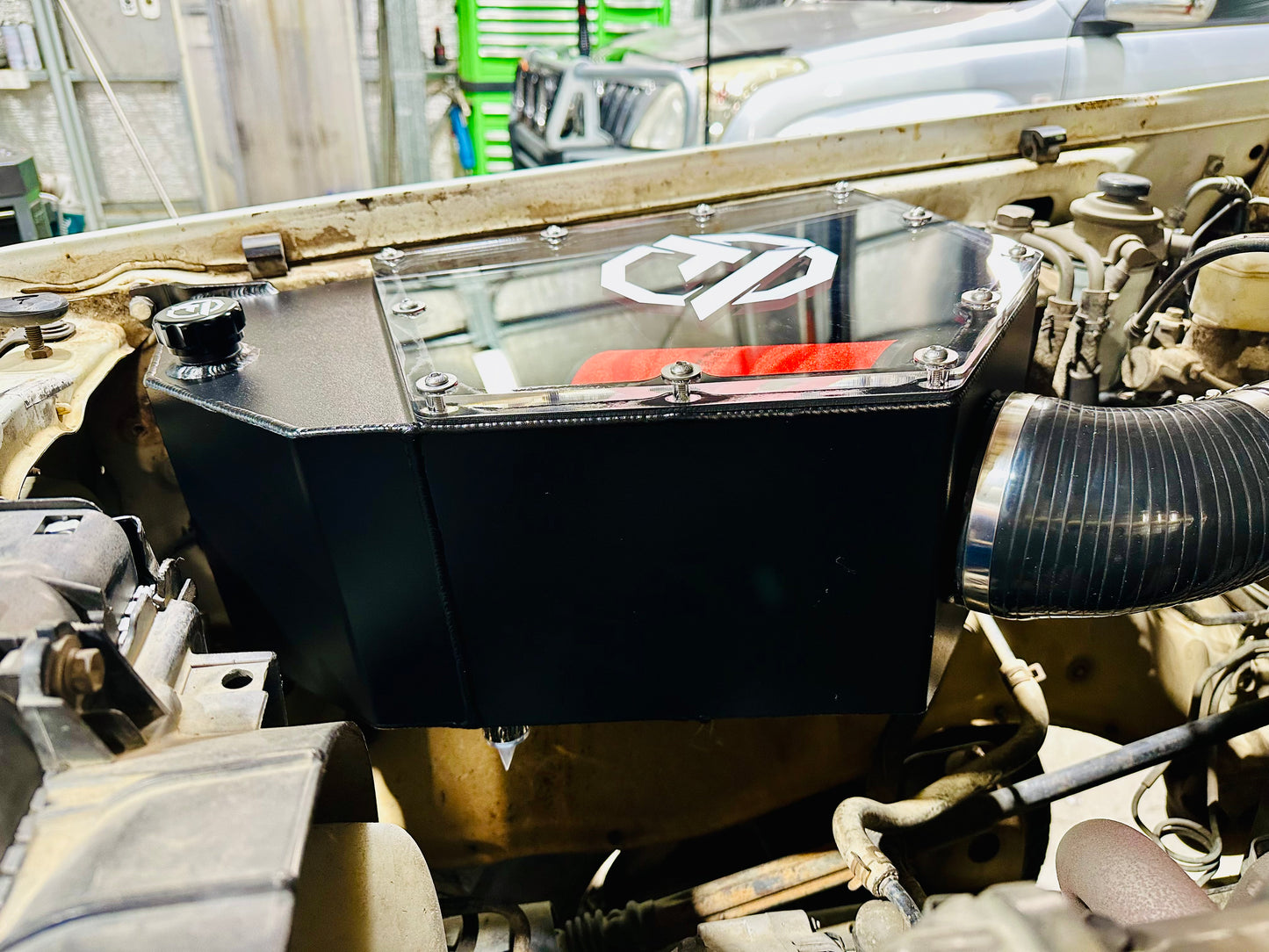

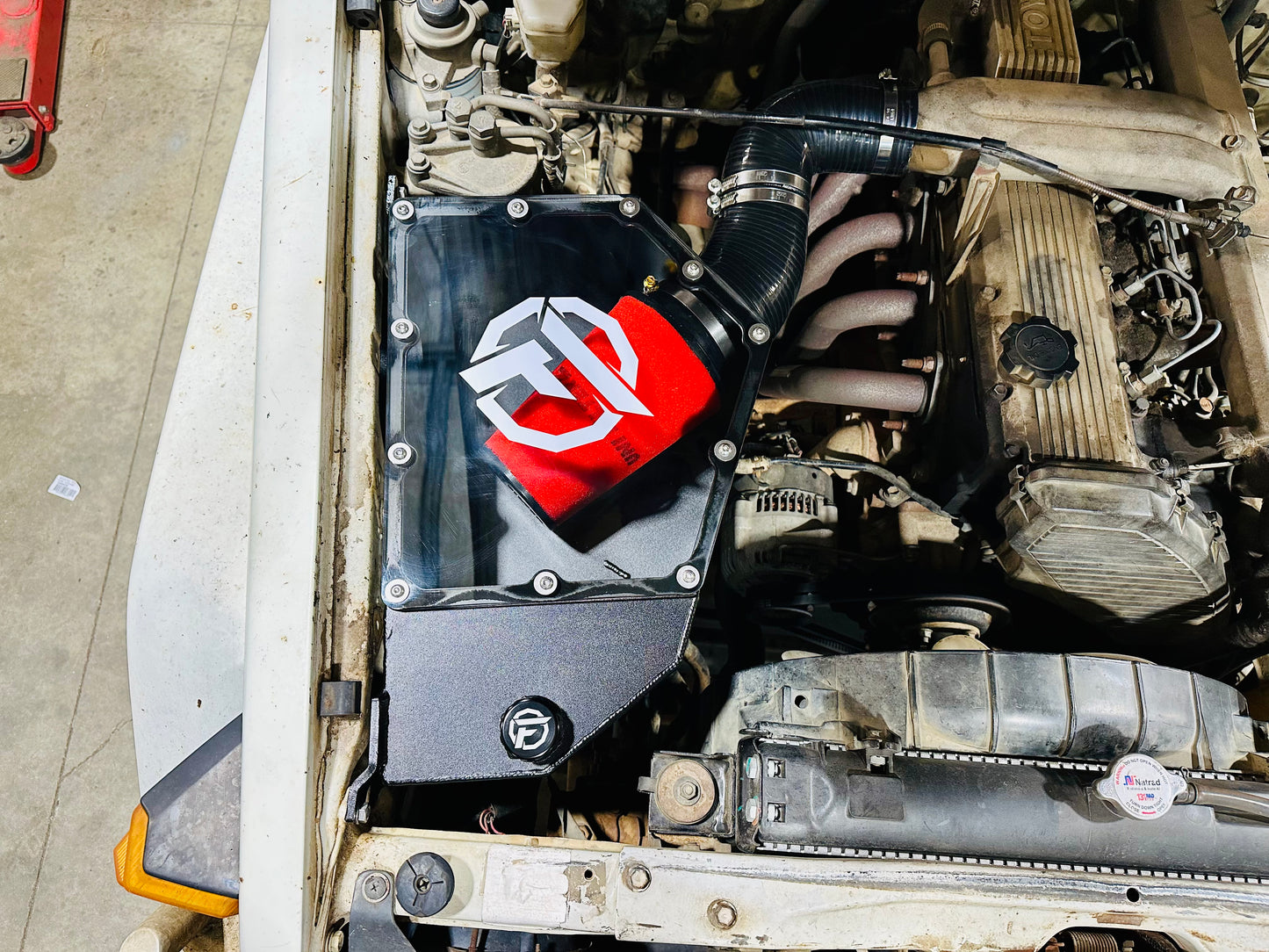

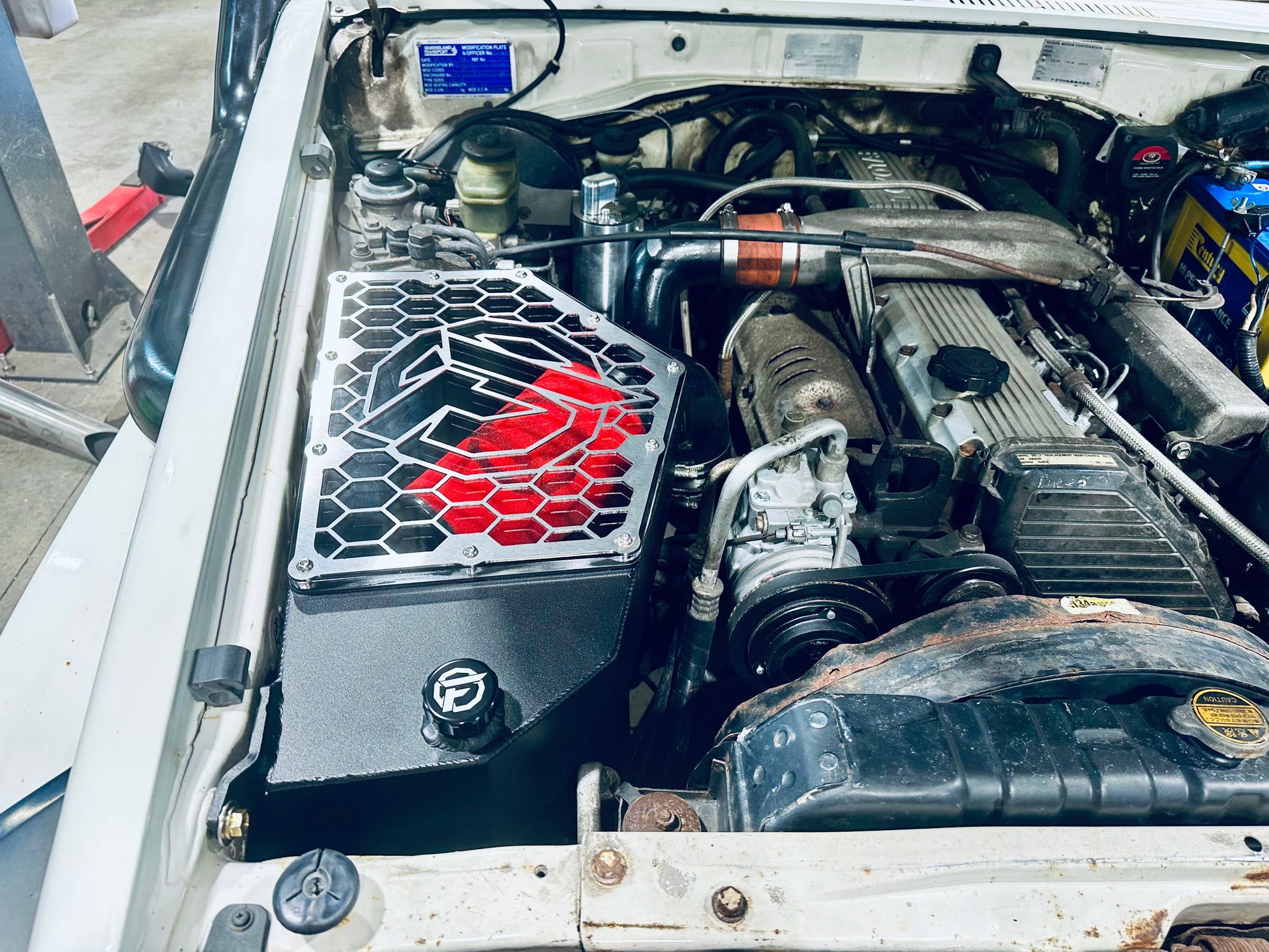

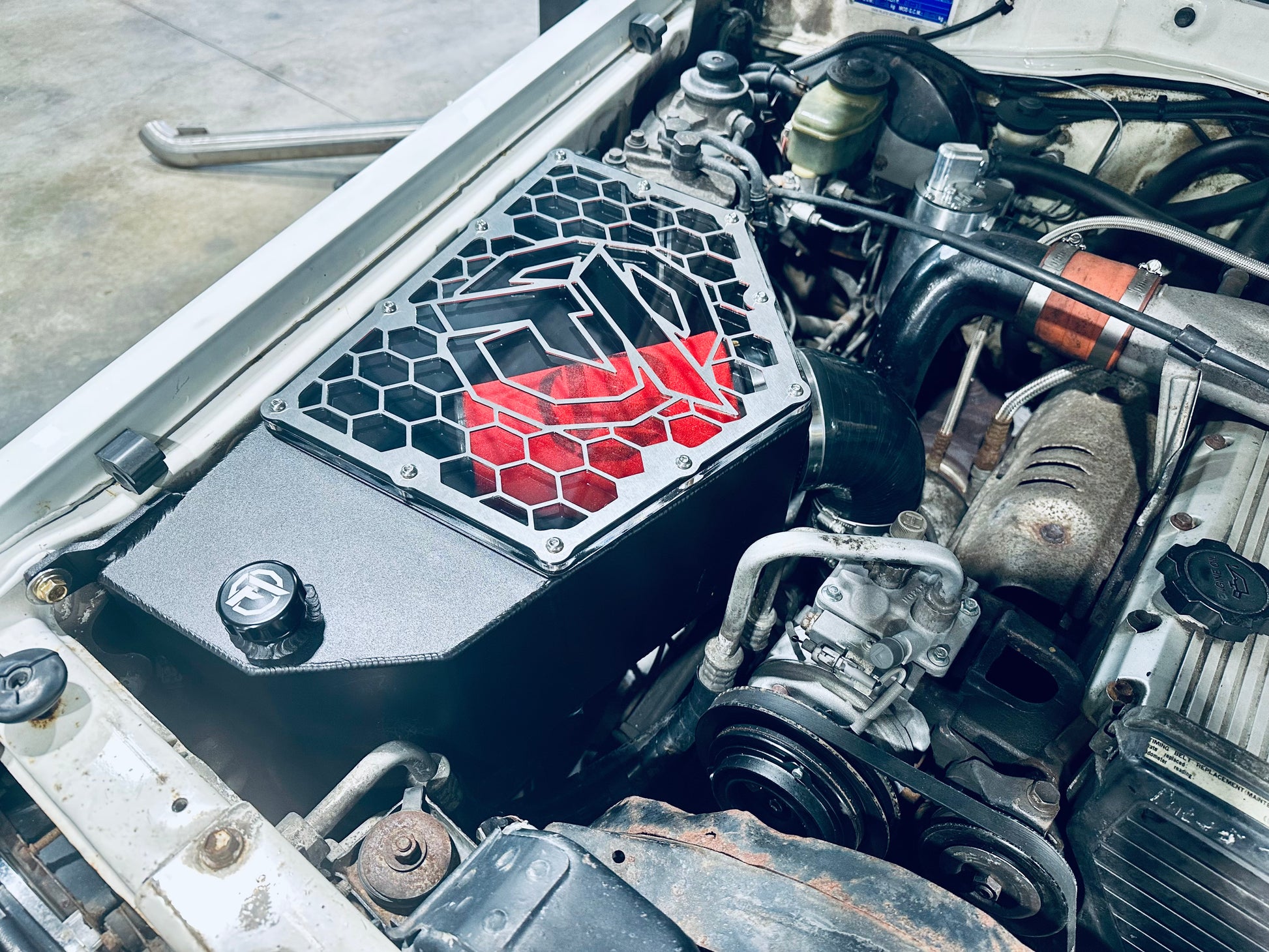

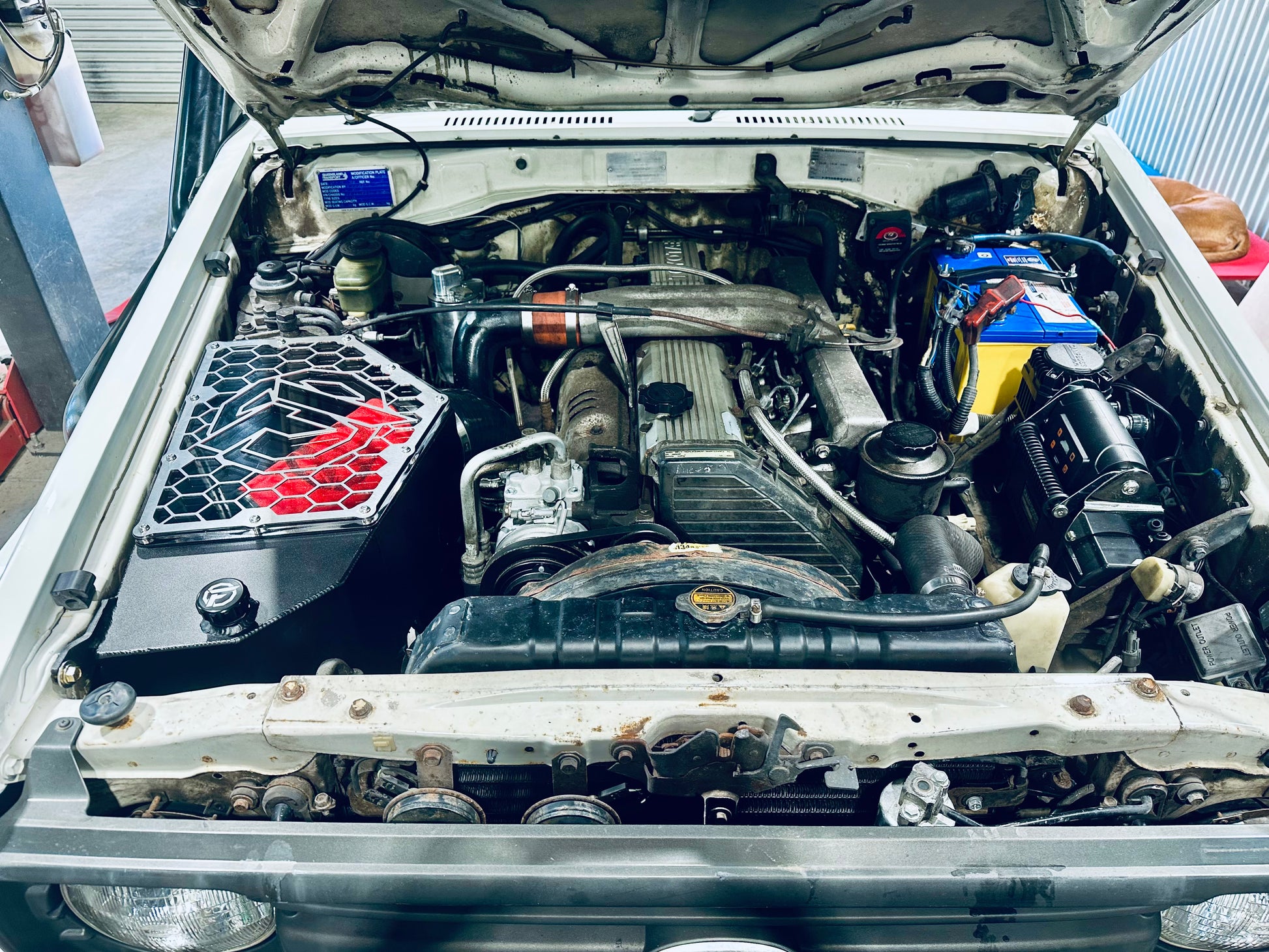

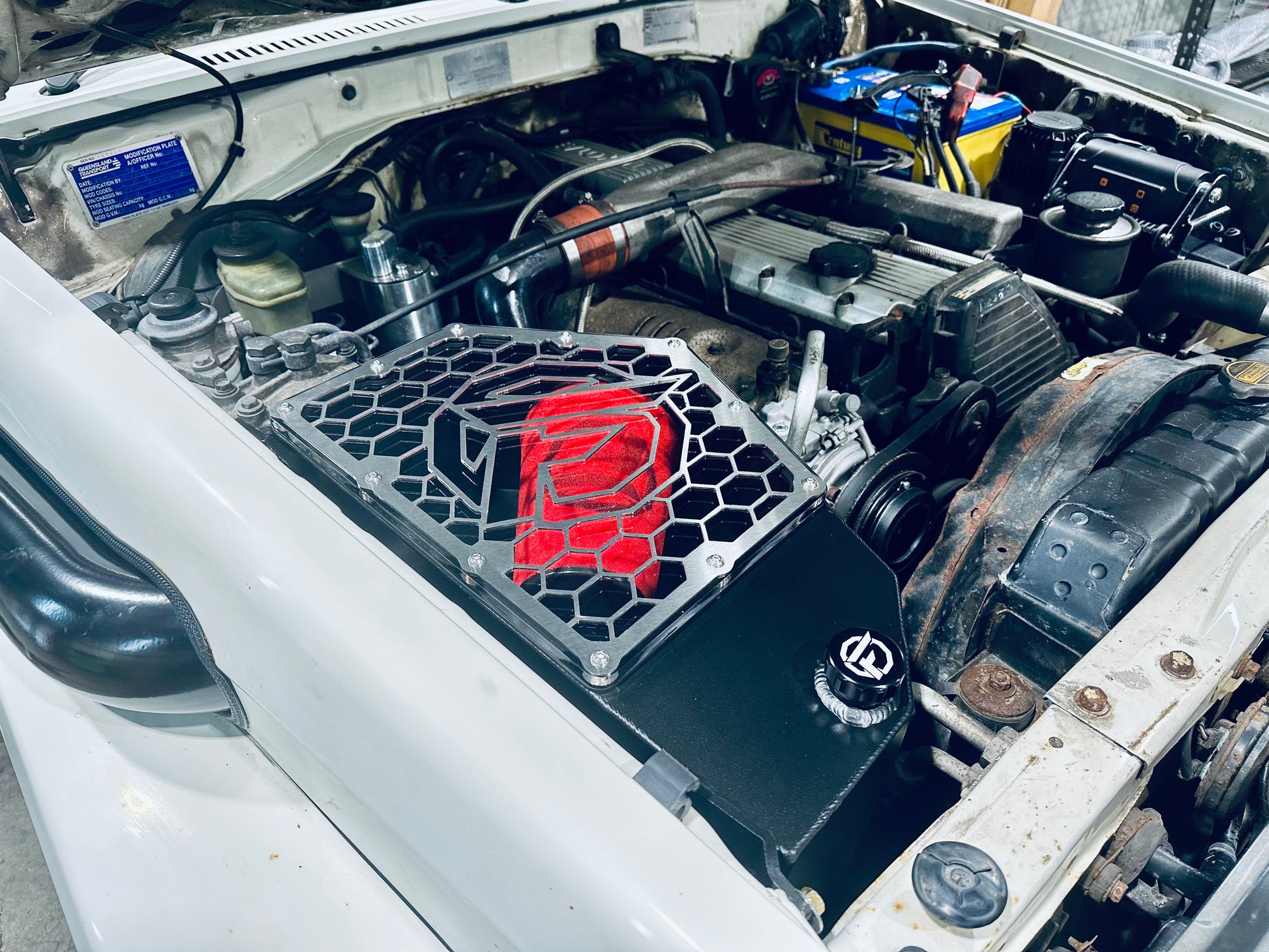

Updated photos of the airbox fitted with revised inclusion of dress plate, yet to be added. Current photos of the airbox fitted are to show the overall shape in the engine only
Enhance your driving experience with the Toyota Landcruiser 75 Series Snorkel & Clear Top Airbox Package.

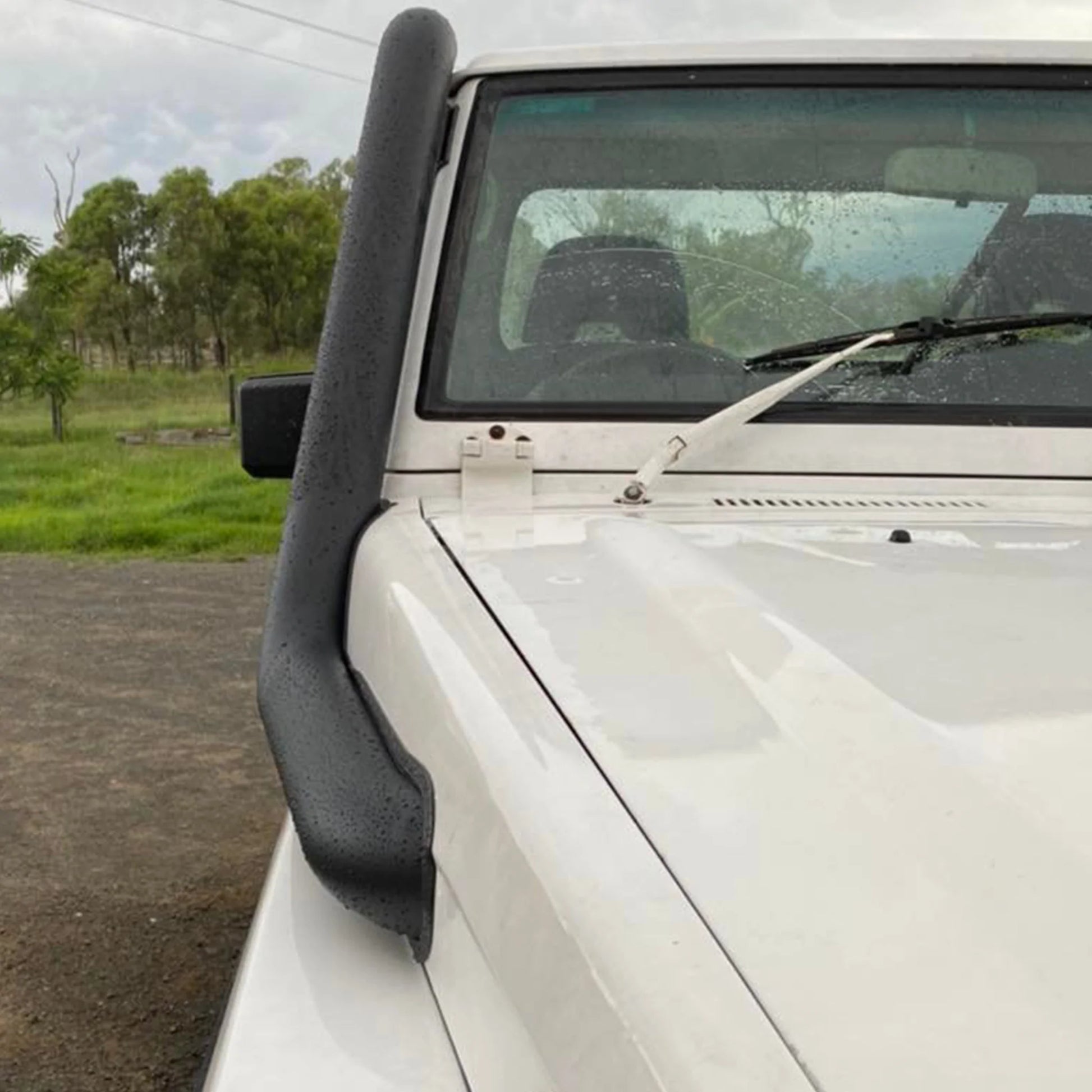

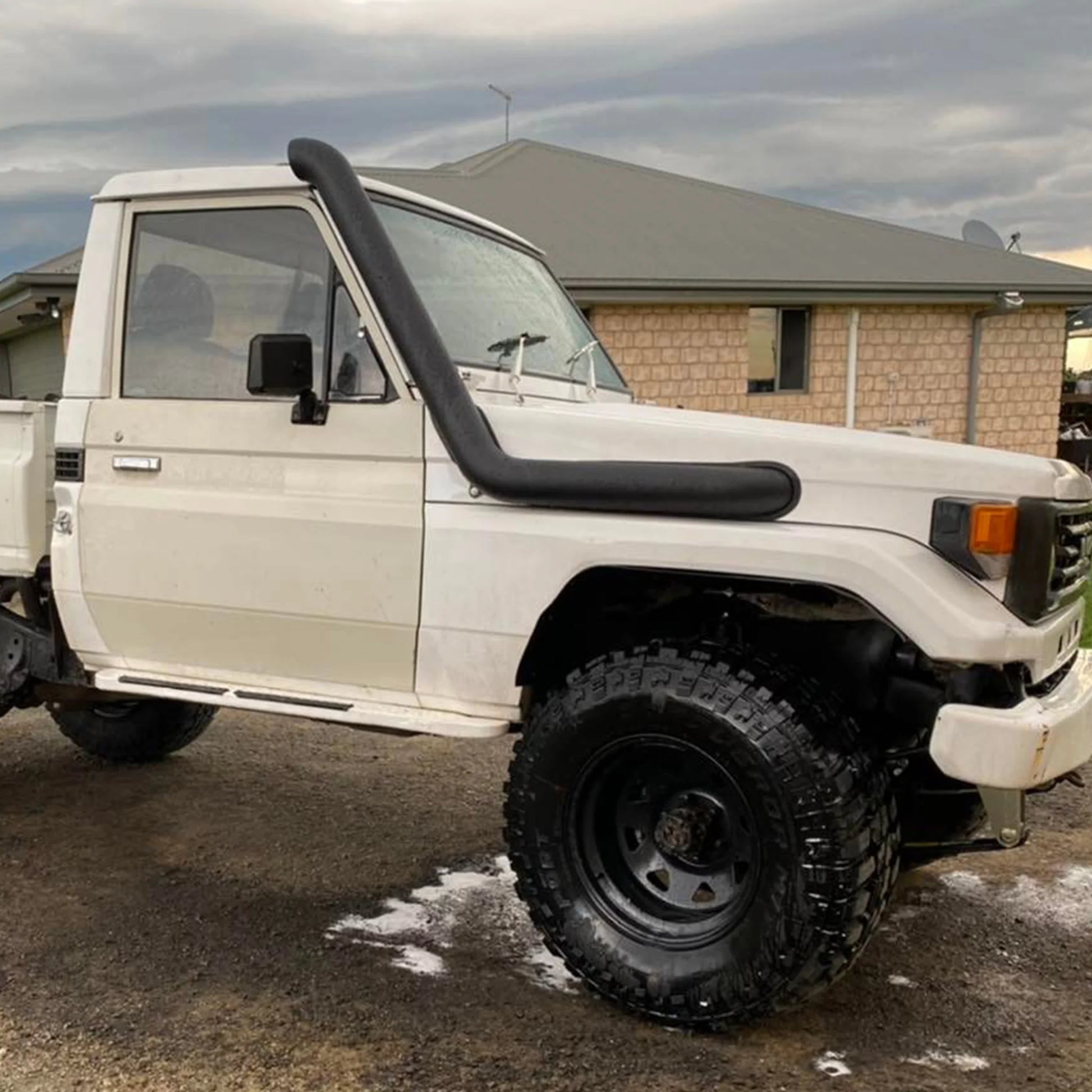

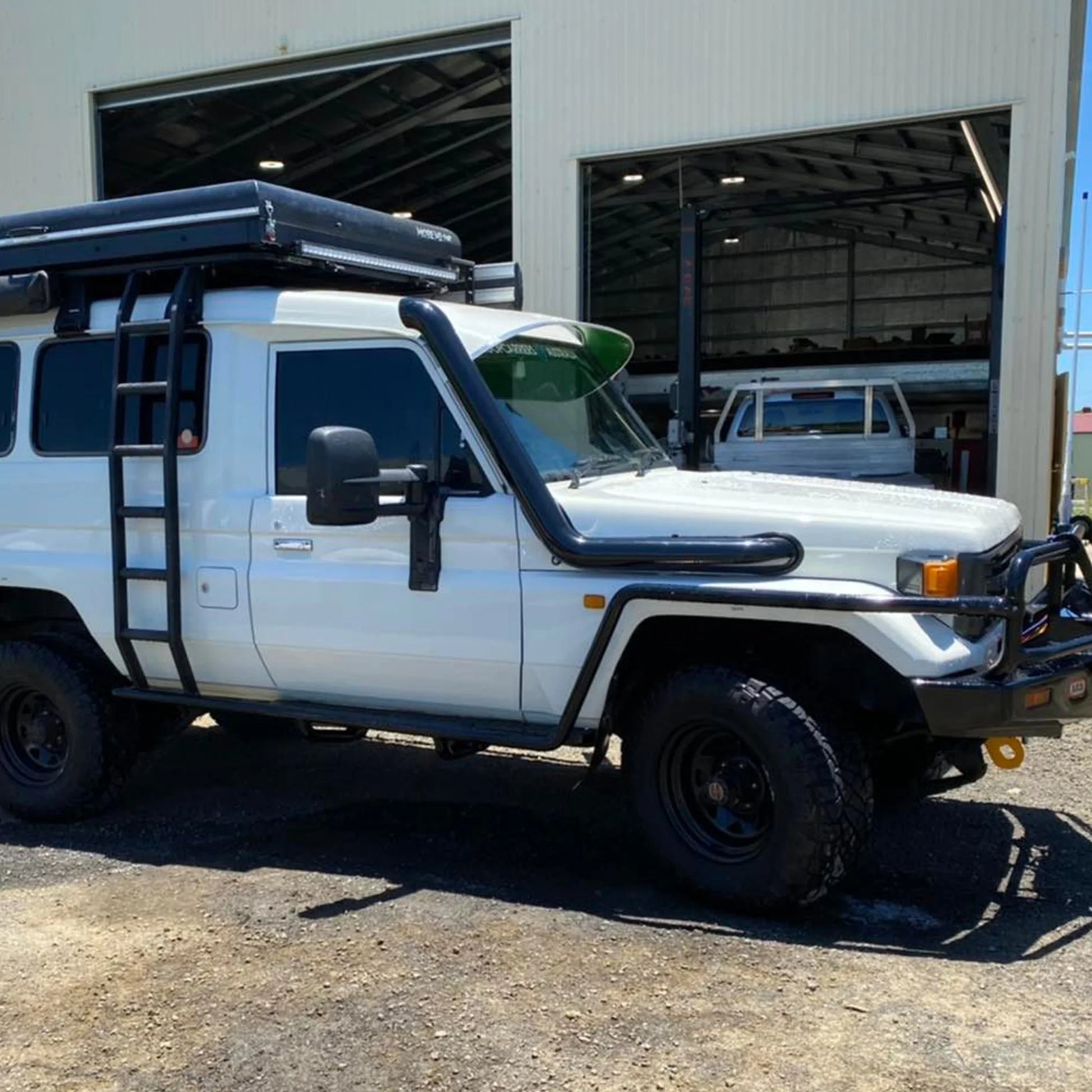

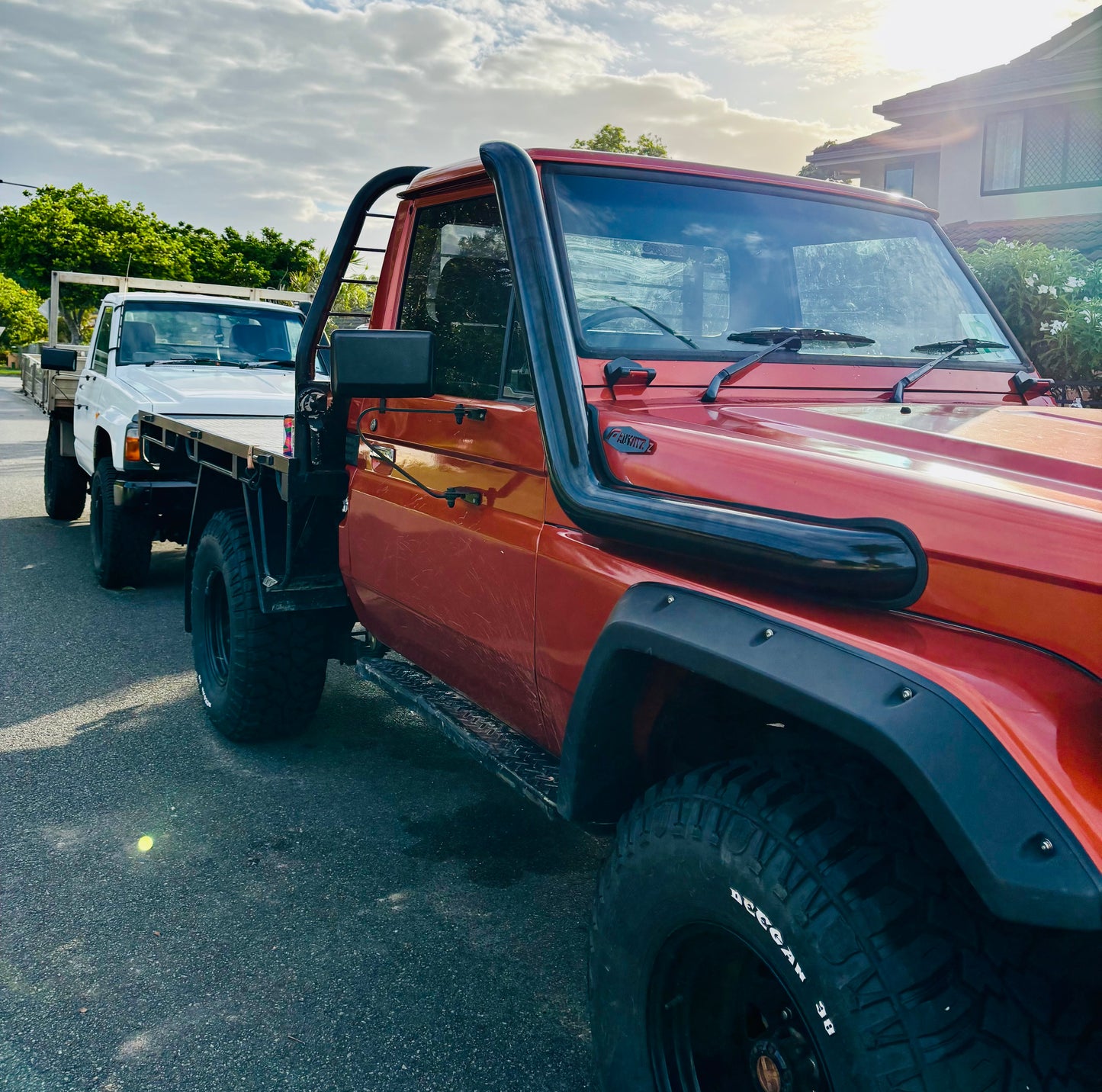

Our 4" snorkel for the 75 Series is Australian made with high-quality stainless steel, featuring a seamless powder coated finish in your choice of satin or gloss black. As a combo kit it will provide improved performance and a sleek aesthetic to your Cruiser. The clear top airbox, designed specifically for the 1HZ engine, is made of ally construction and powder coated in texture black. The clear top design allows for better visibility of the filter and adds an extra touch of style to your engine bay.
SNORKEL:
Style: Standard
Weld Type: Seamless

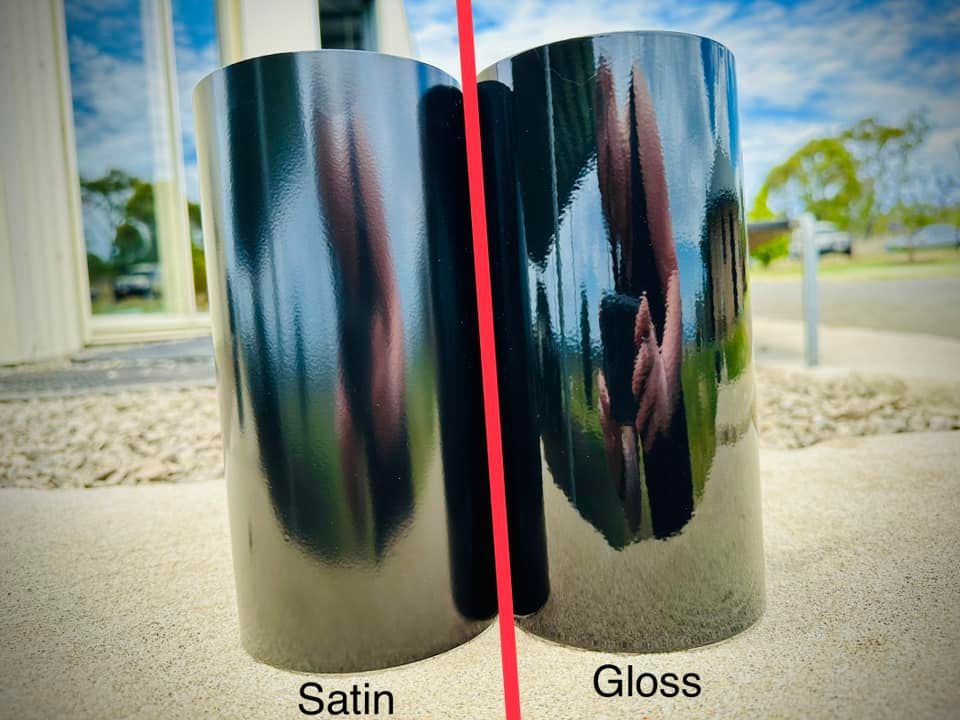

Finish: Powder Coated (Satin or Gloss Black only)
End Cap Shape: Round End OR Low Cut

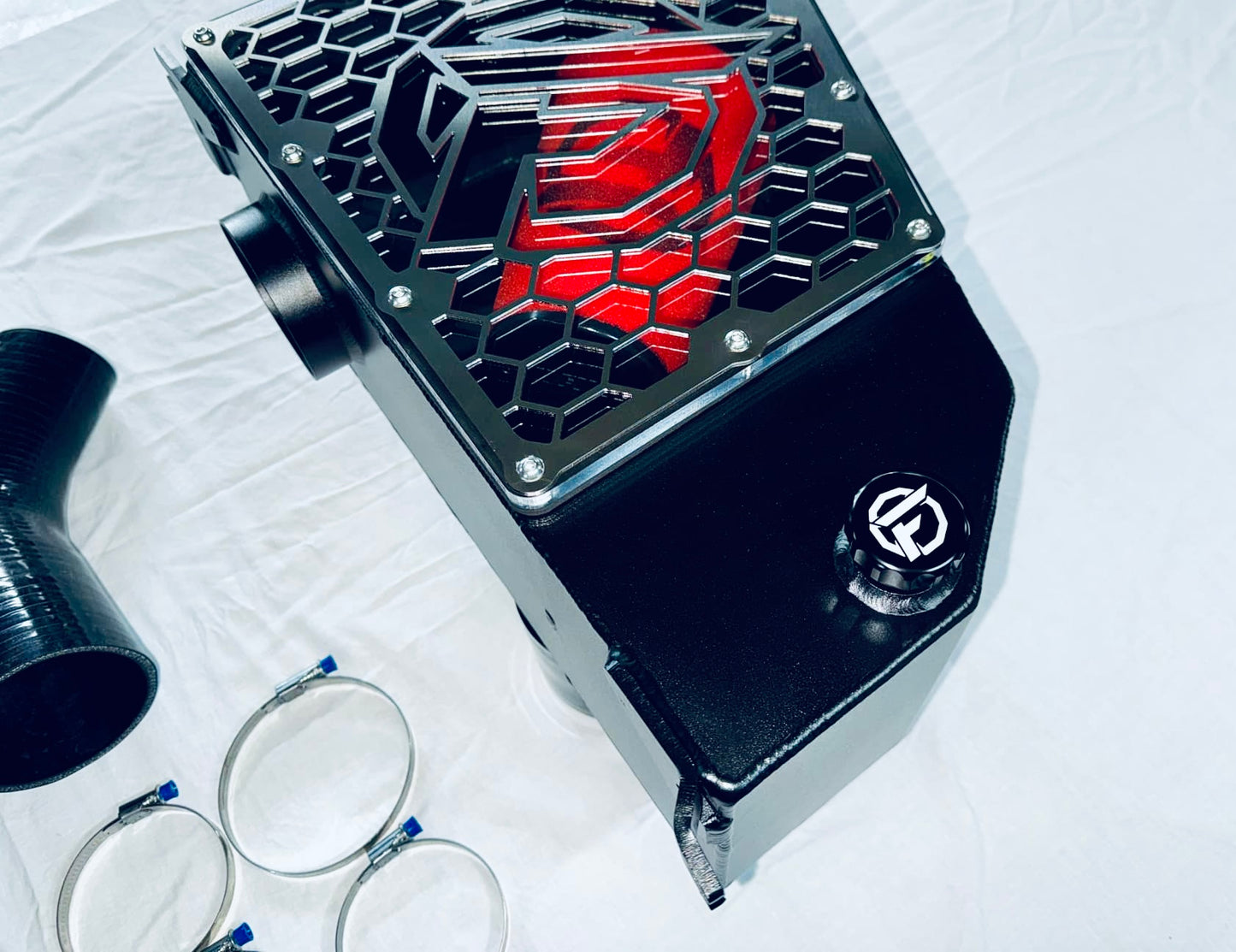

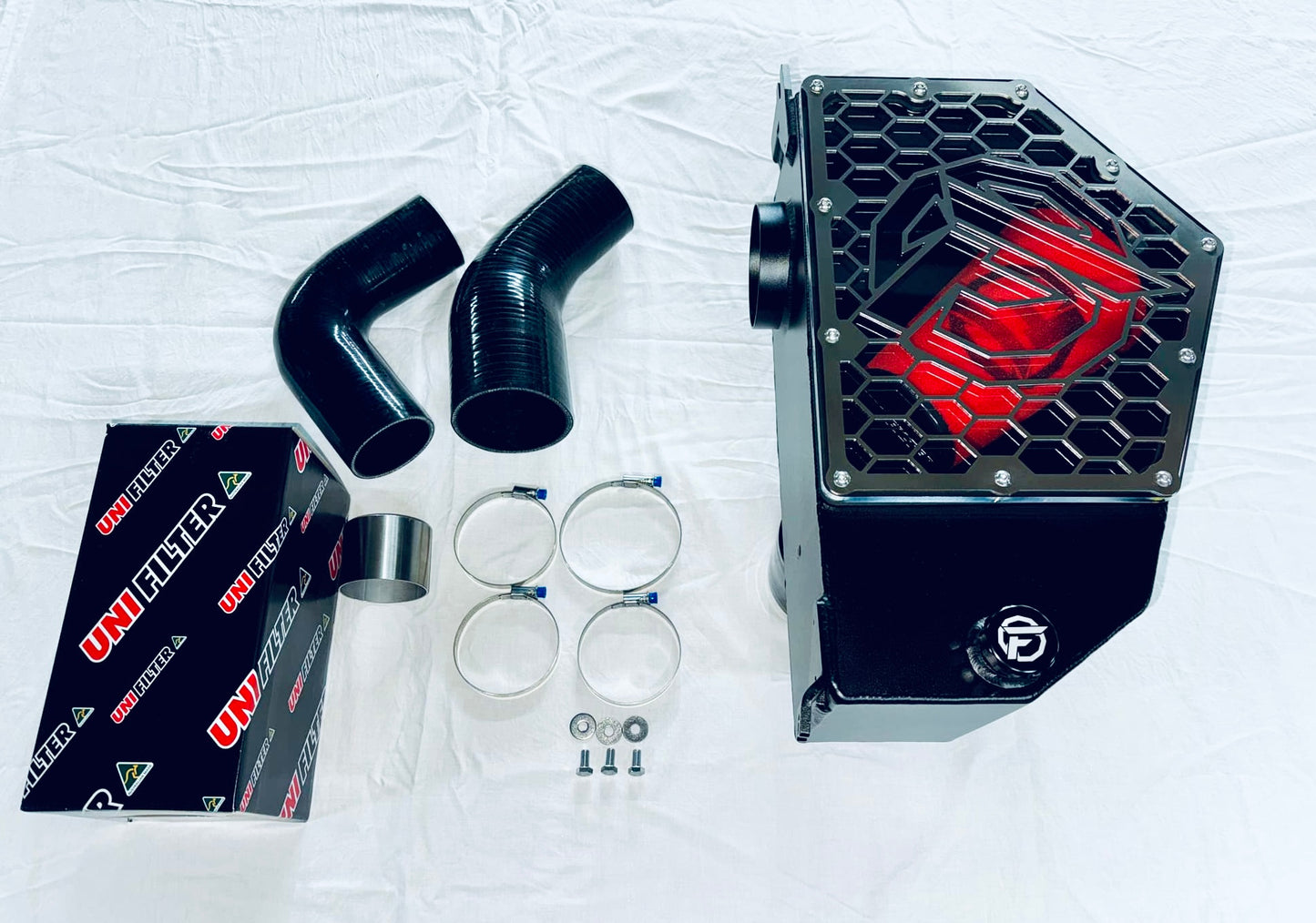

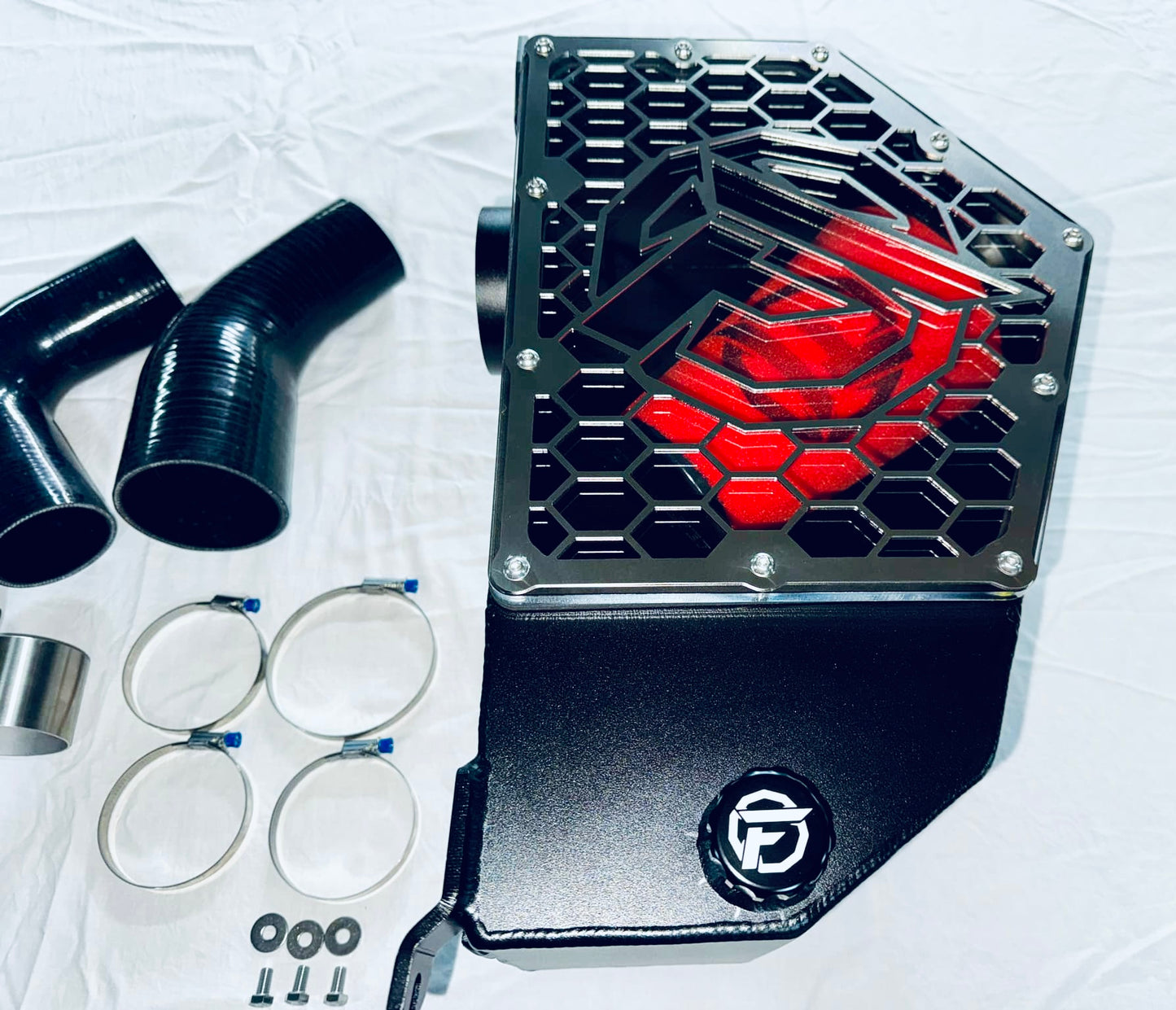

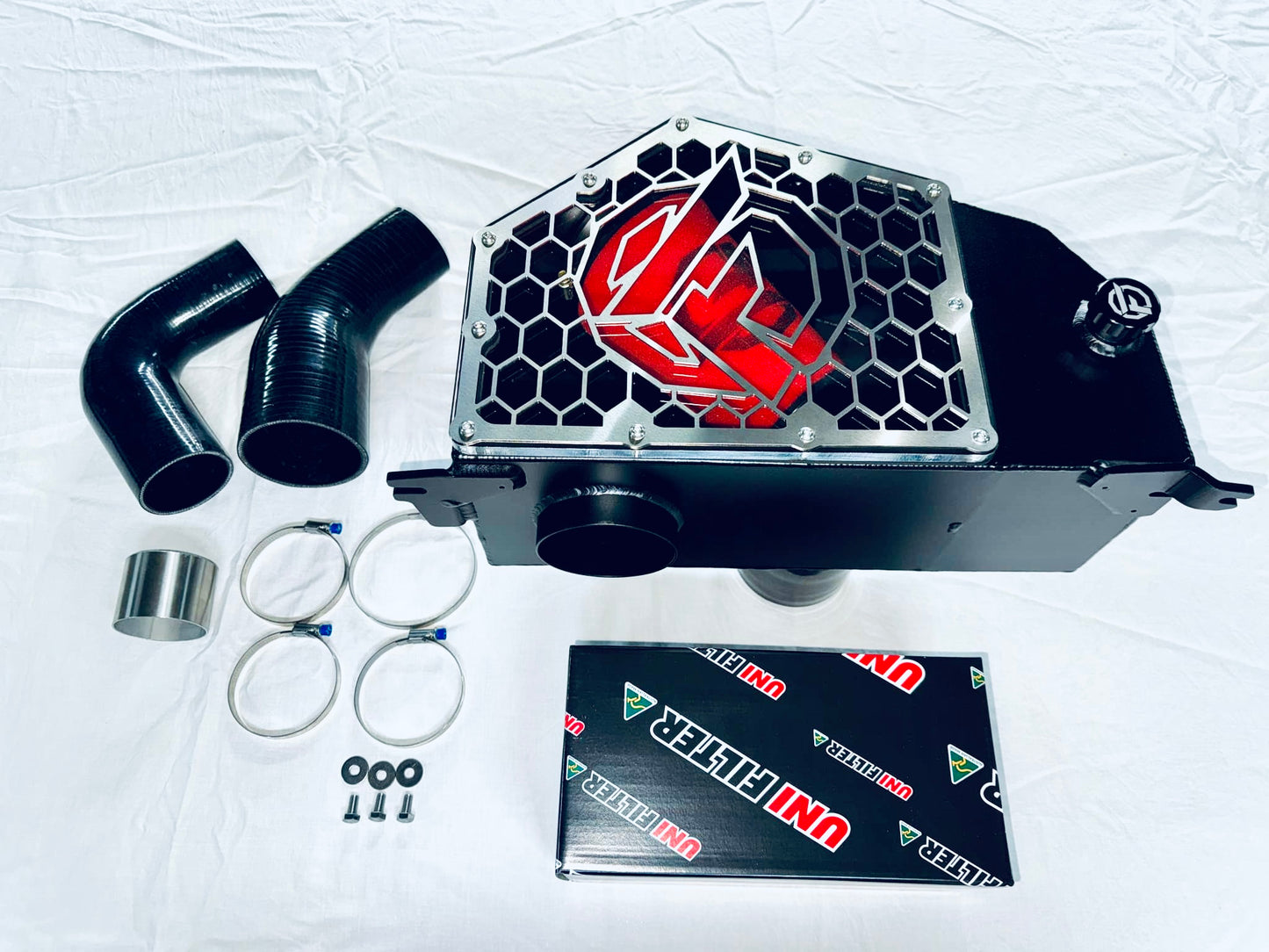

AIRBOX:
- To suit the 75 Series 1HZ Engine only.
- CNC cut and folded 3mm Ally construction
- Made with a 4" Inlet and 4" Outlet
- CNC 10mm acrylic lid, with brushed stainless dress plate & our logo
- CNC rubber gasket
- Built-in Duck Bill drain
- Utilizes the factory points in the engine for mounting
- Incorporated ally washer bottle

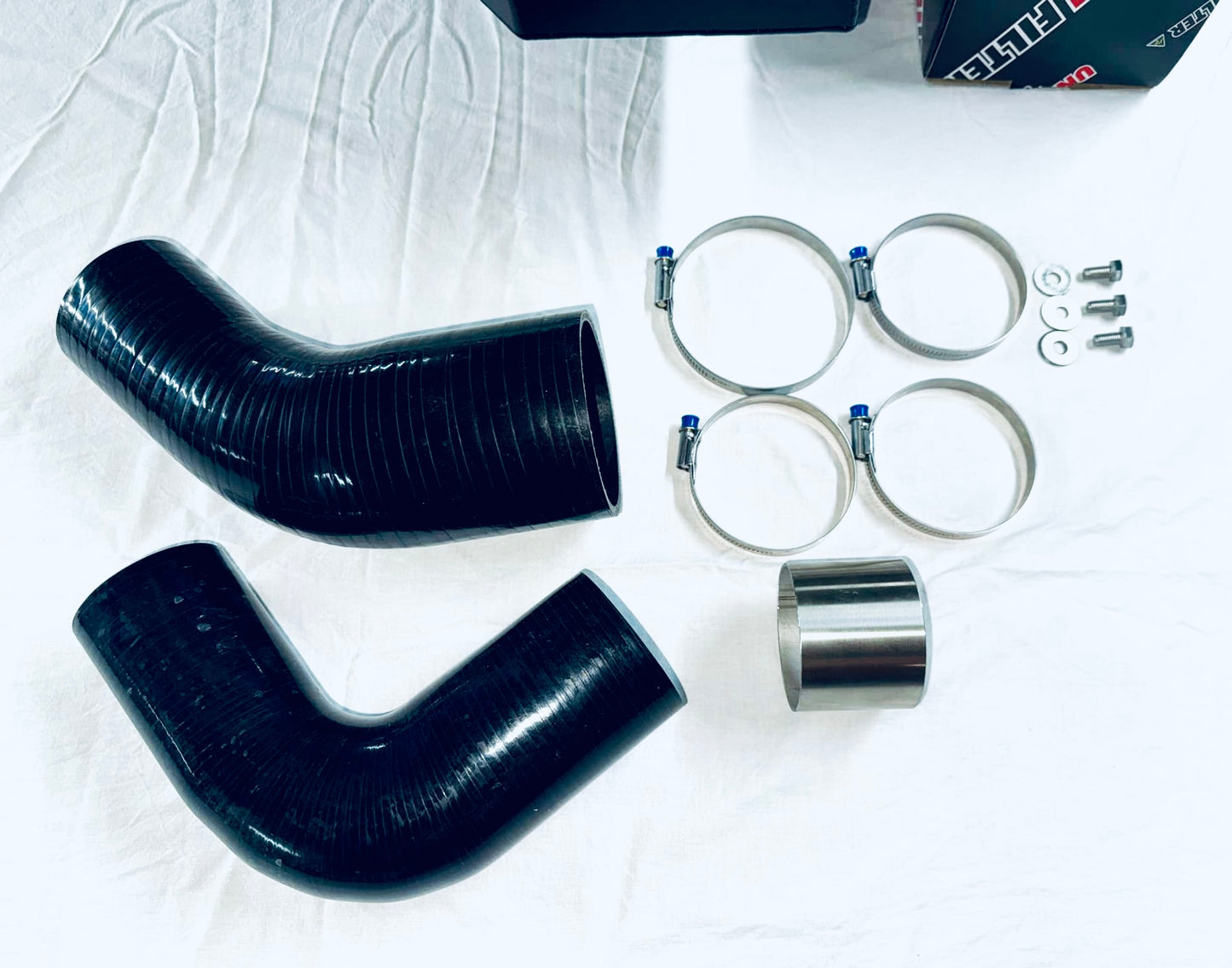

- Includes intake to turbo
- Includes a 4" Pod Filter (Aeroflow, K&N or UniFilter - stock dependent)
Airbox finish: Texture Black only
Dress Plate: Brushed stainless only (no powder coating)
Please Note: Airbox is compatible with the below.
HZJ 75 Series – Style Diesel
- HZJ75 1HZ (UTE + TROOPY) 1990-2000
-------------------------------------------------------
Does your vehicle have a snorkel already?
You may require a cover up badge to cover a remaining hole in your guard. Please view our Fabwitz Cover Up Badge by clicking HERE for further details, and ensure you add this to your order if needed.
-------------------------------------------------------
*Trimming is required within the guard - please contact us prior to purchase for further information. Will not fit with a visor - the visor brackets will require some modifications to suit*
End Cap Design: All snorkels come with our standard Fabwitz "f" logo cap. If you would like one of our other designs, you must select from our "Accessories & Merchandise" category.

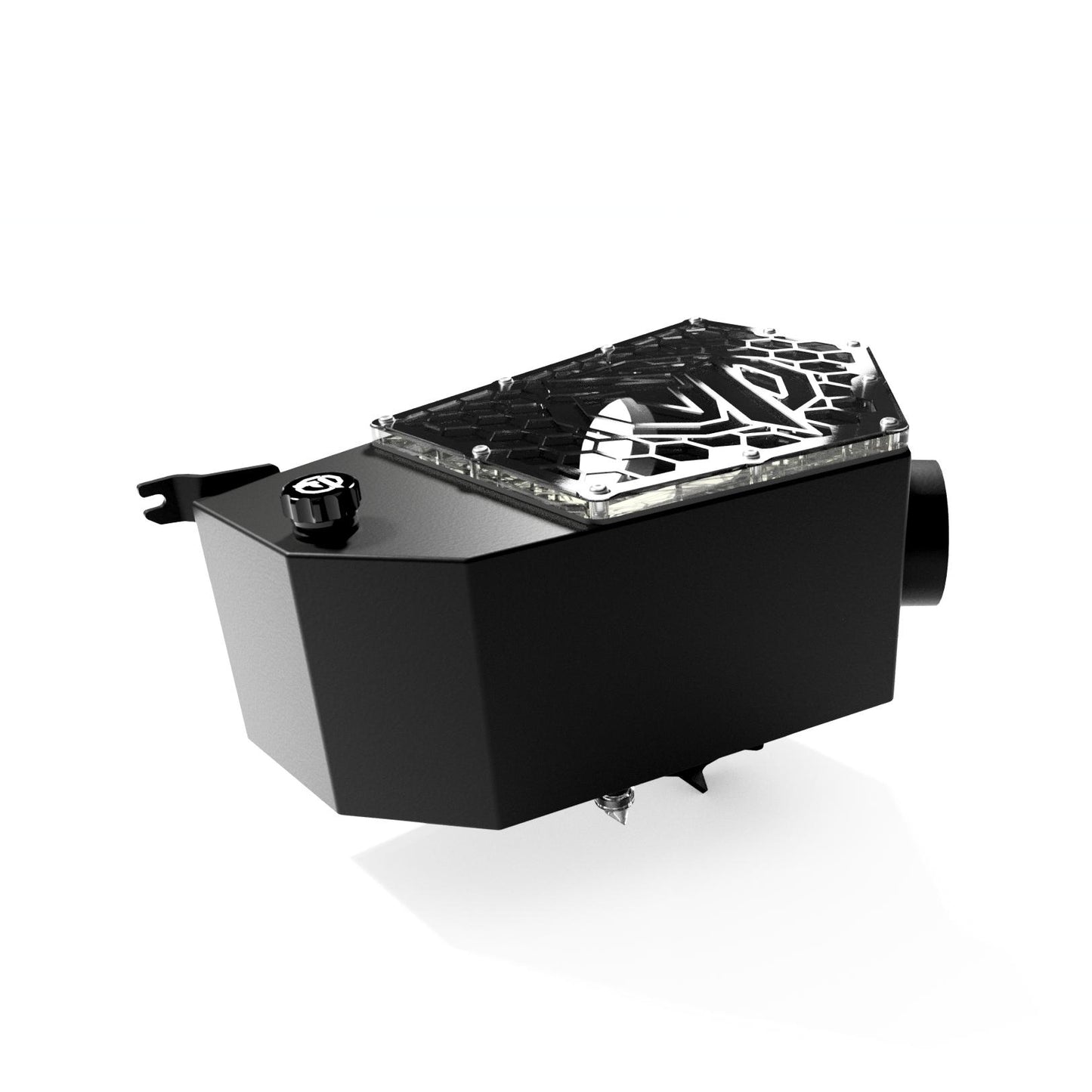

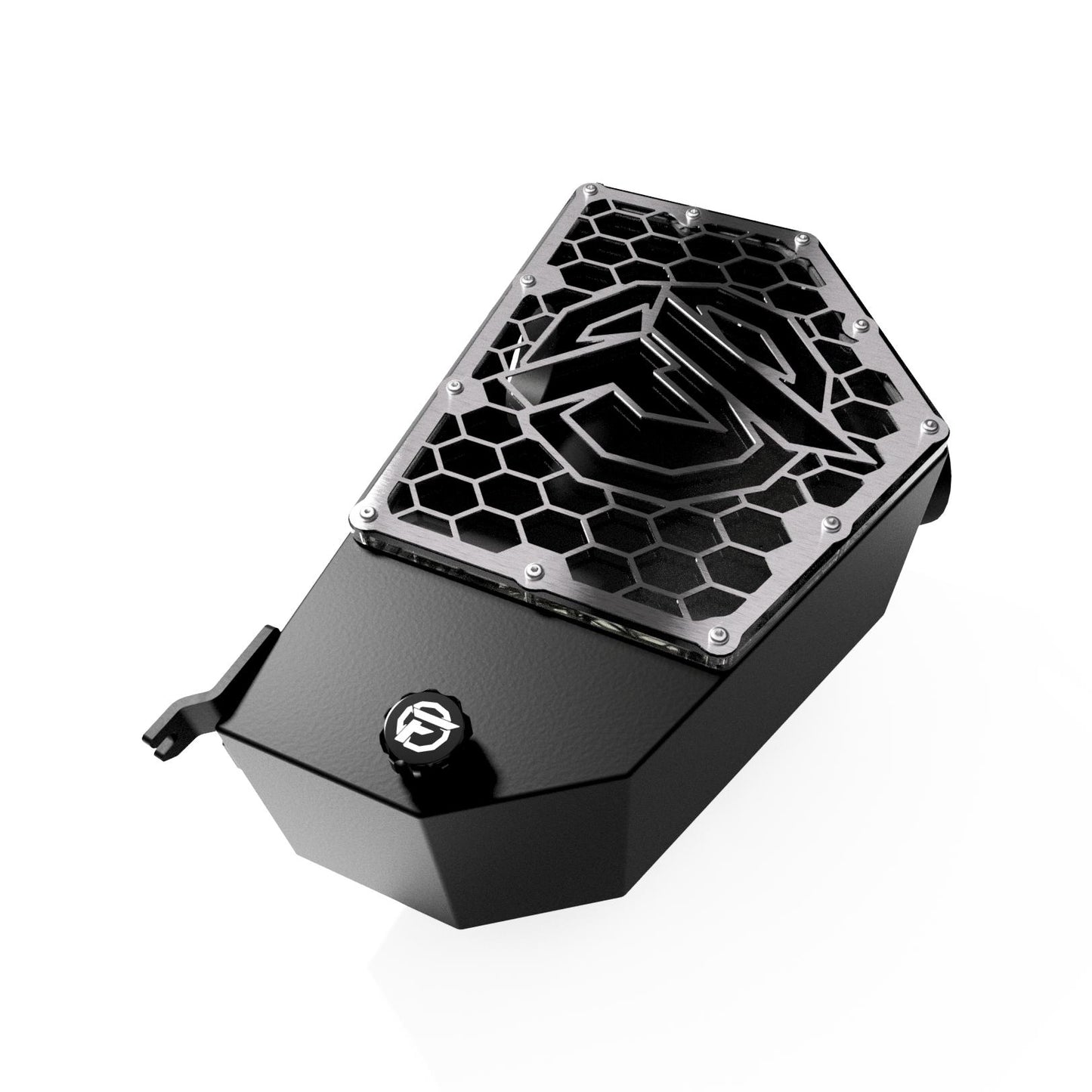

Please note: Rendered images of the clear top airbox are used as a representation of the product only. The overall product may vary slightly in general appearance and surface finish. Trimming may be required within the guard and/or engine bay, to widen a pre-existing hole, please contact us prior to purchase for further information. Photos of around end are of basic weld, used to show the overall shape of the snorkel with the round end option only.
FITMENT: please add your preferred date in the additional notes of your order. Taking into consideration our fitment availability notice at the top of our homepage, your preferred date is not guaranteed. We will contact you to confirm availability or an alternative date.
